E2769 Item Details

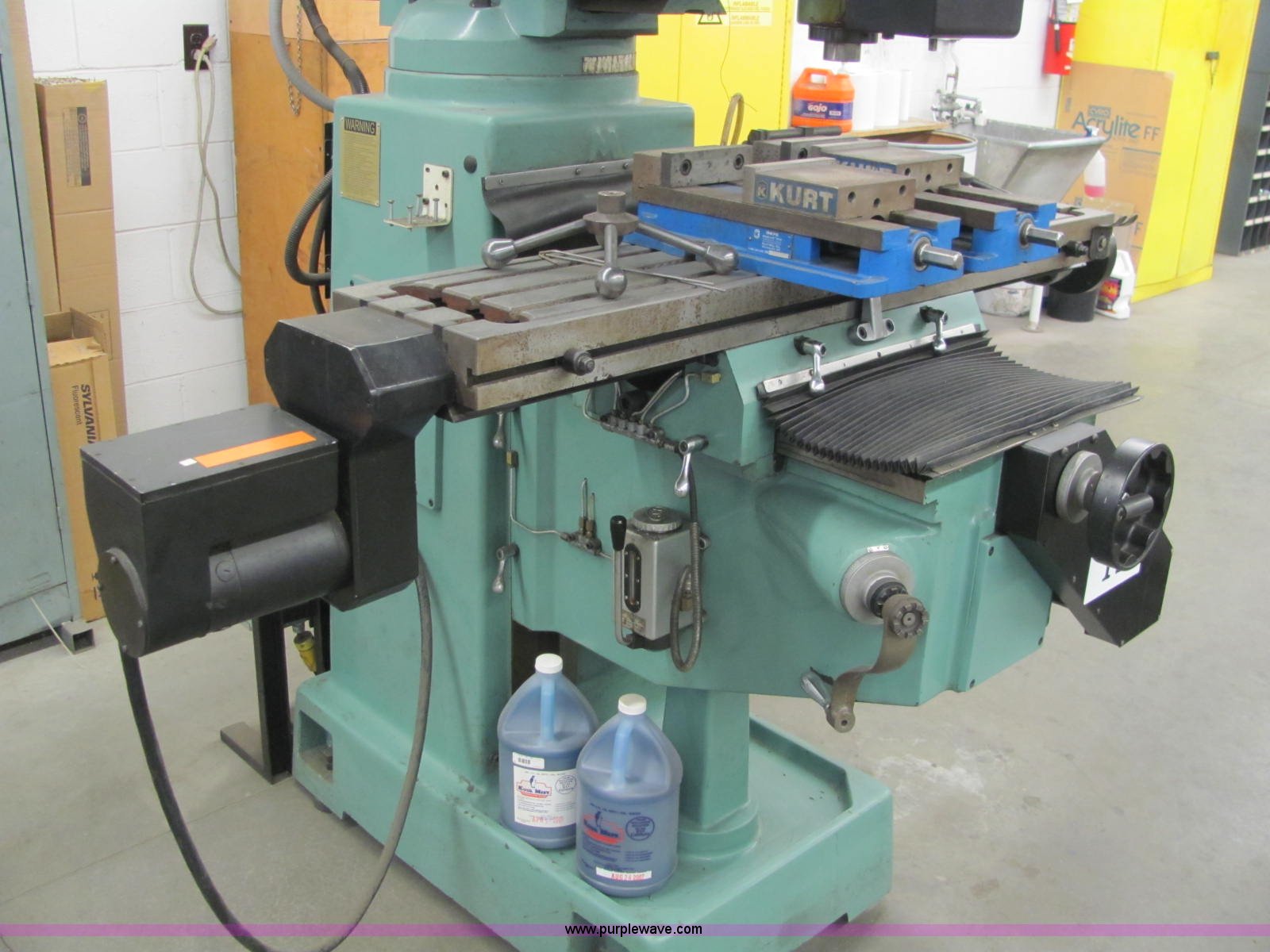

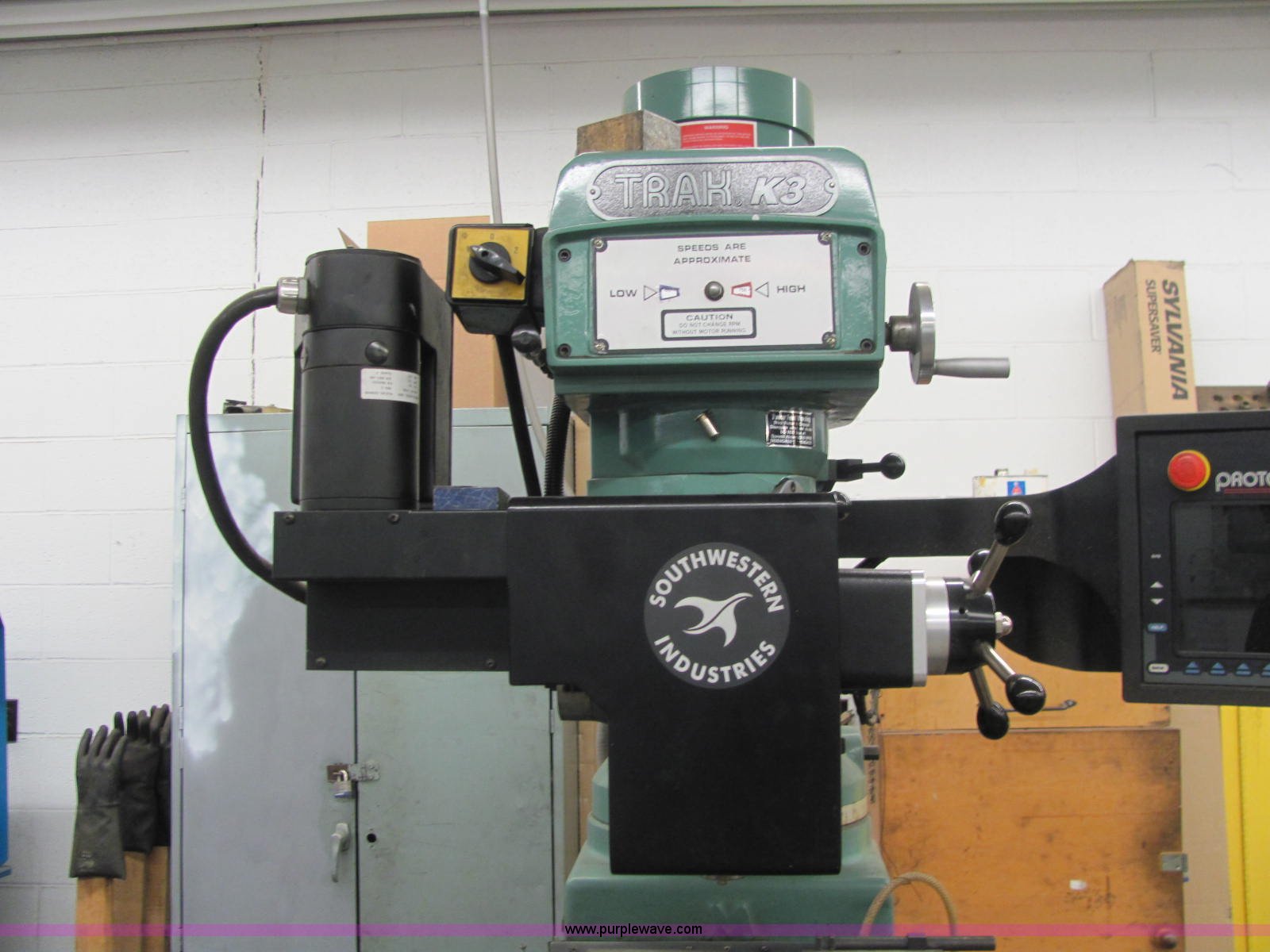

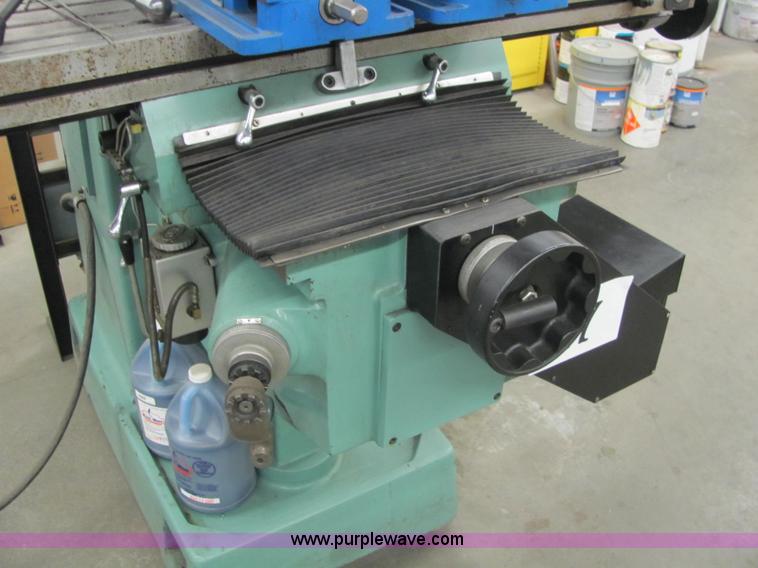

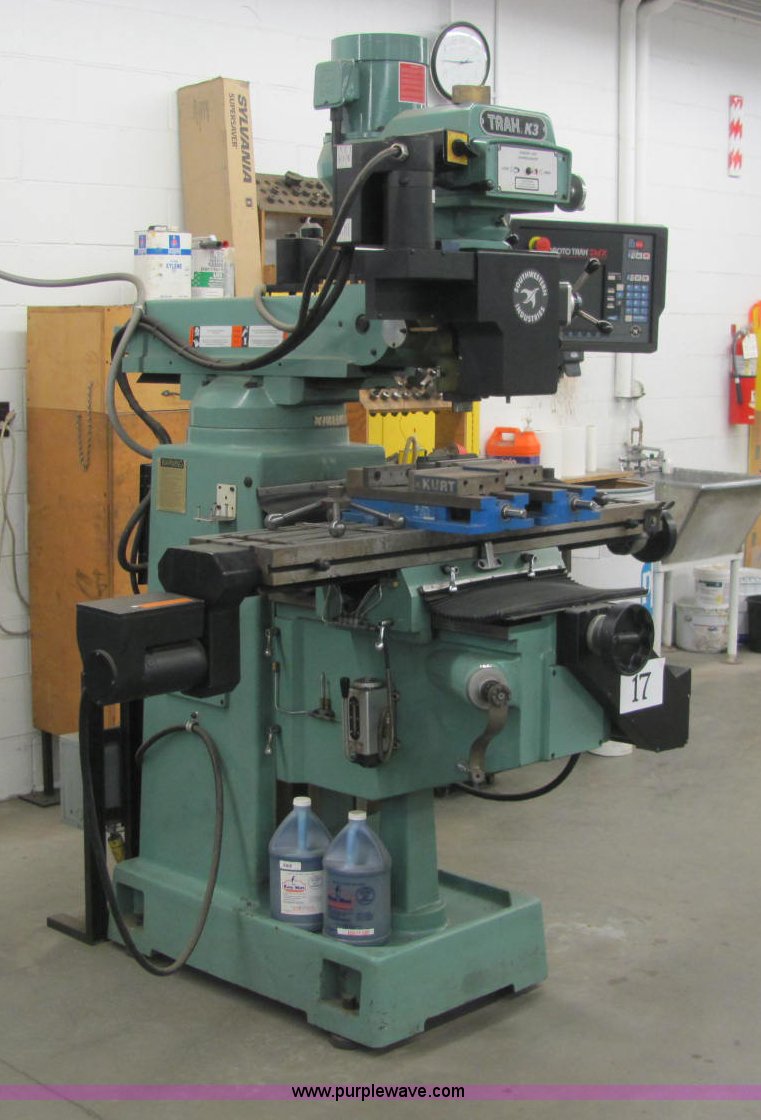

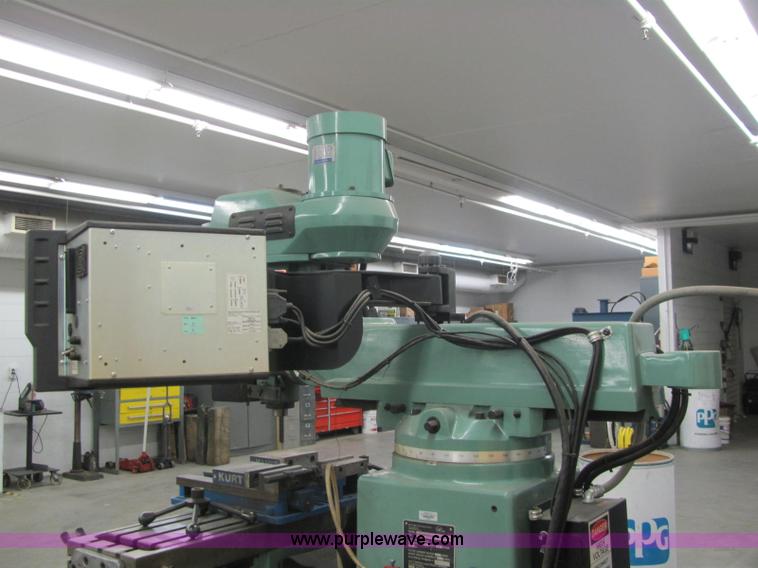

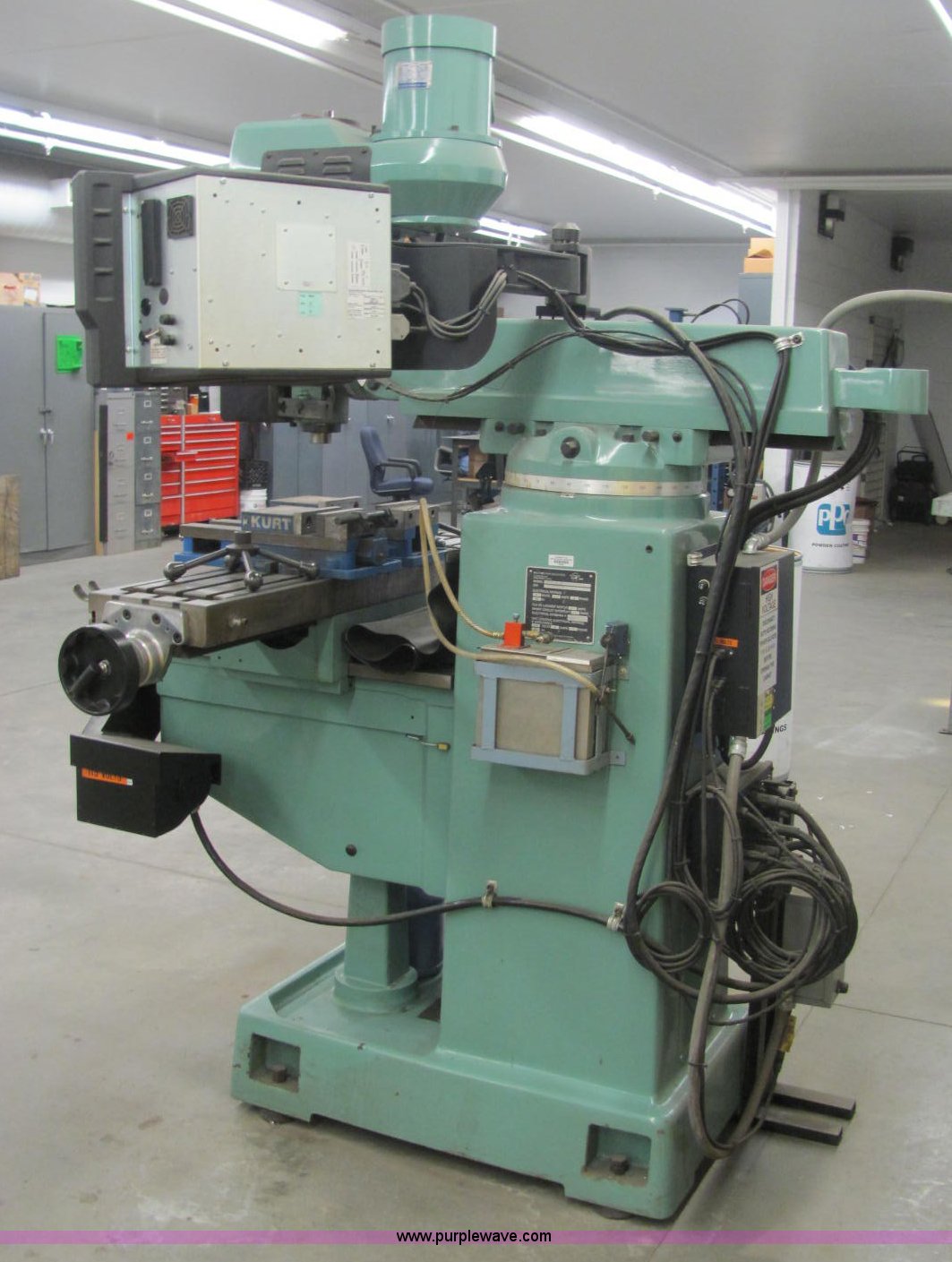

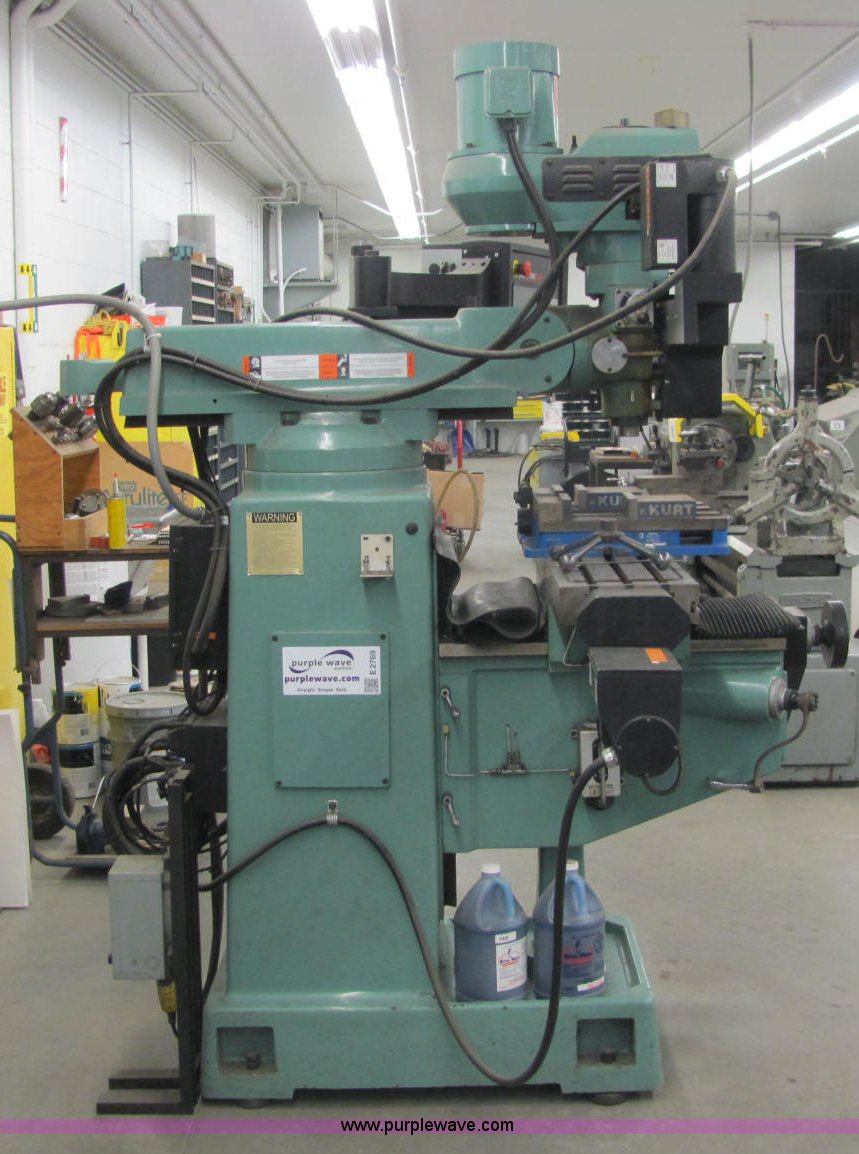

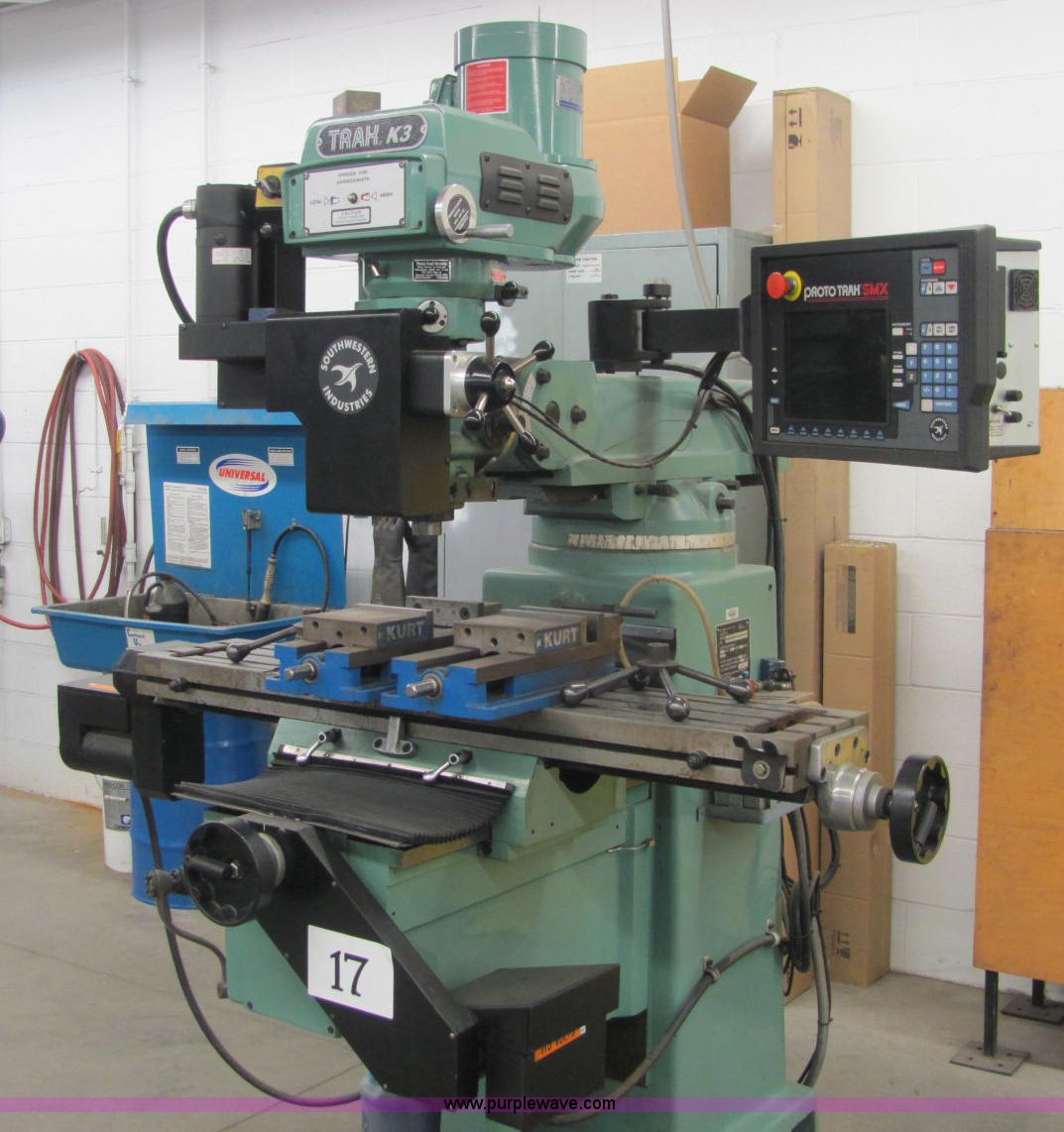

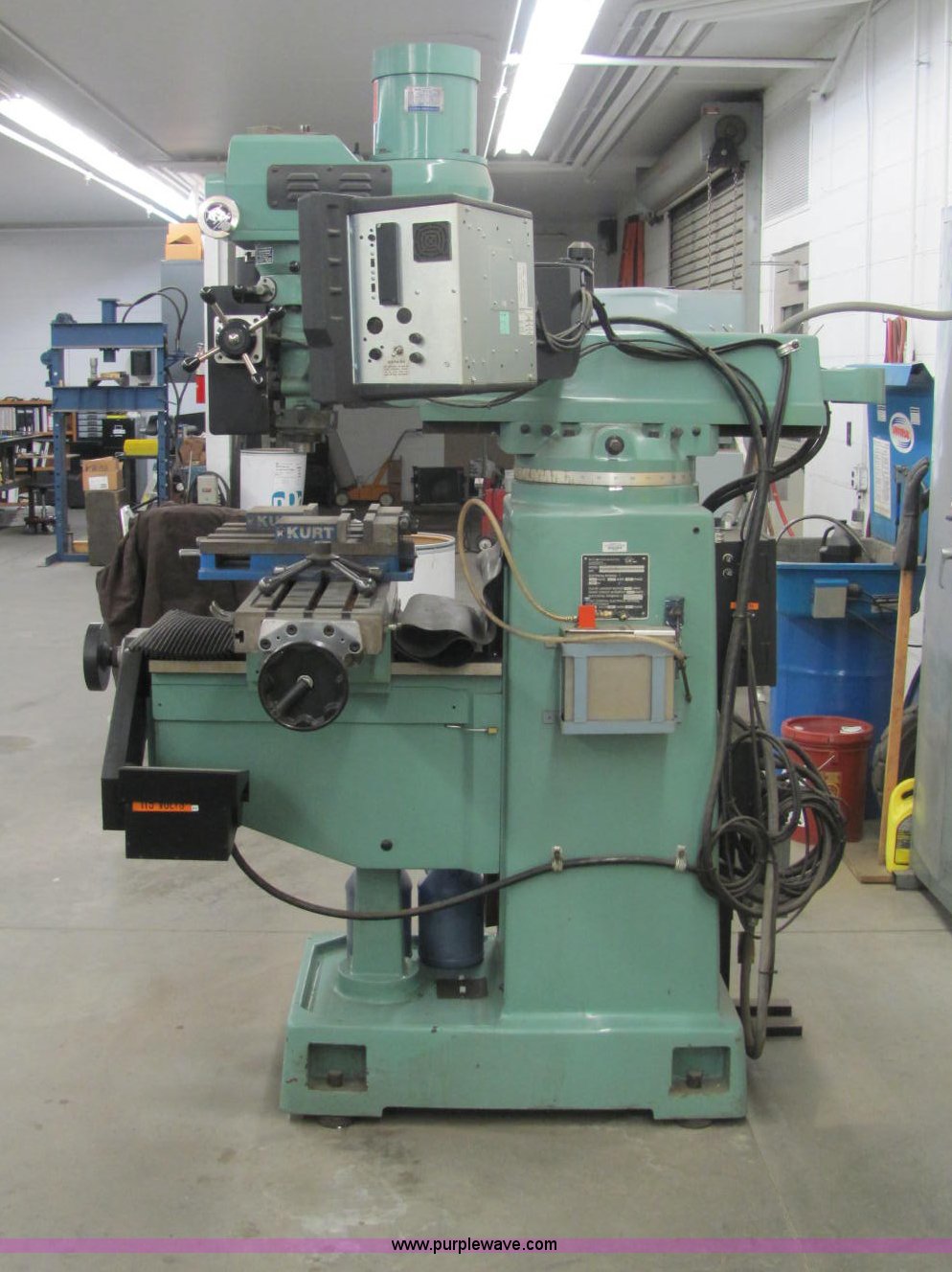

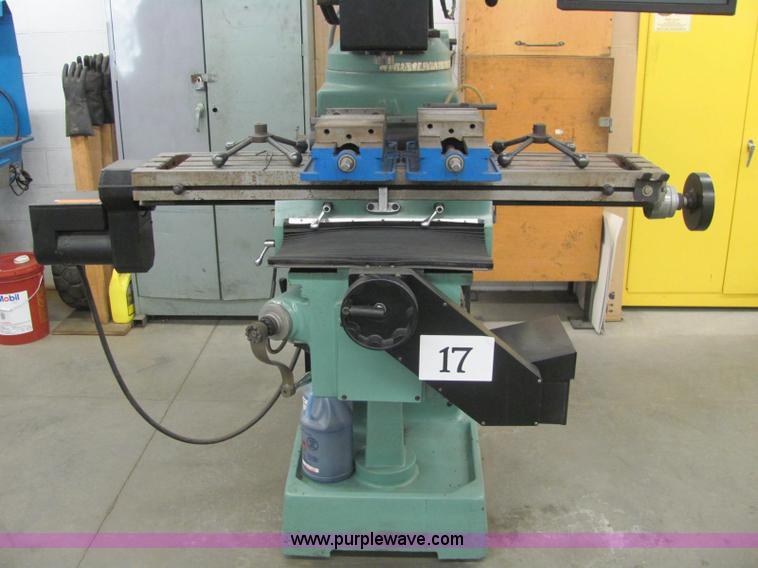

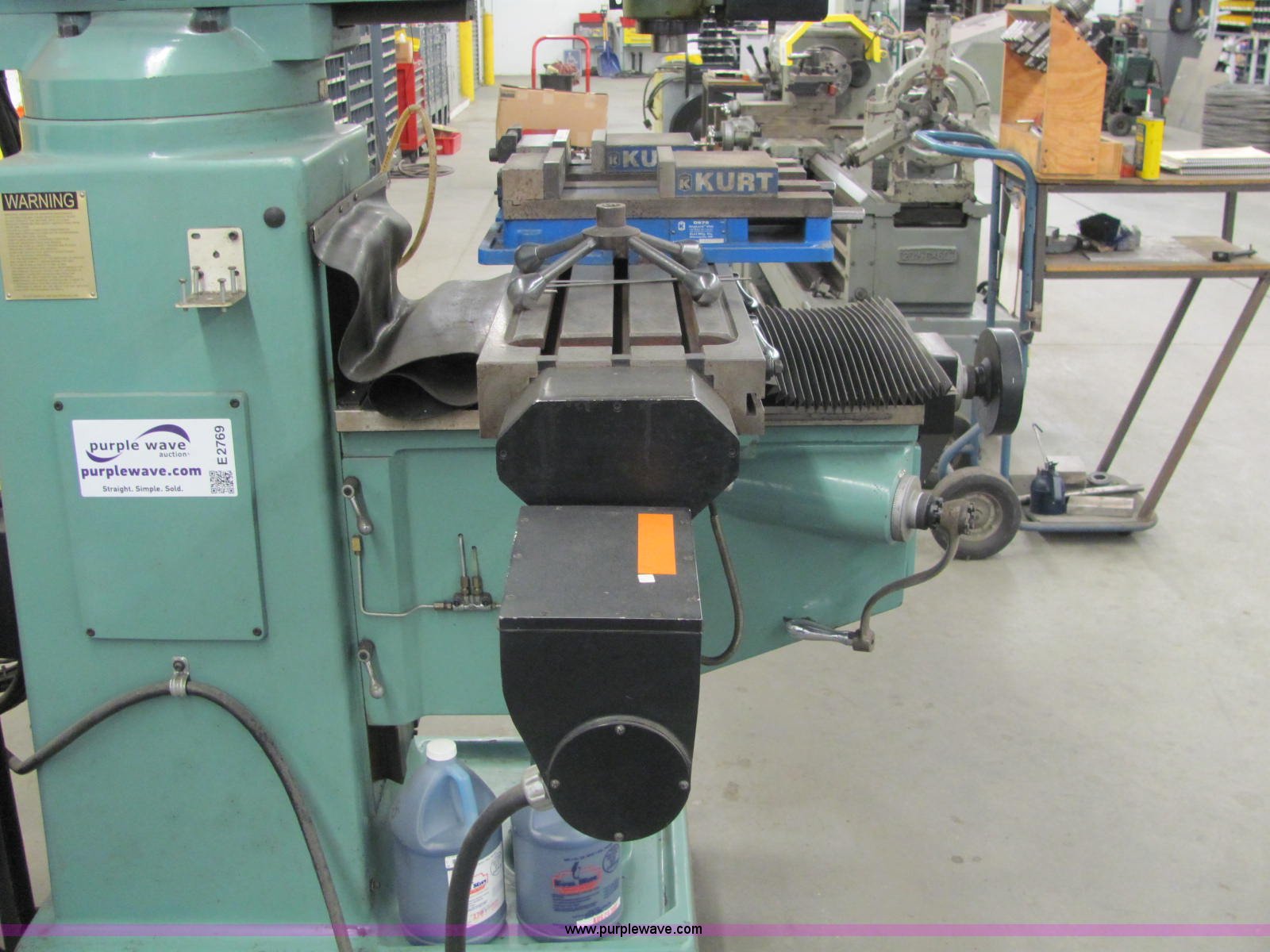

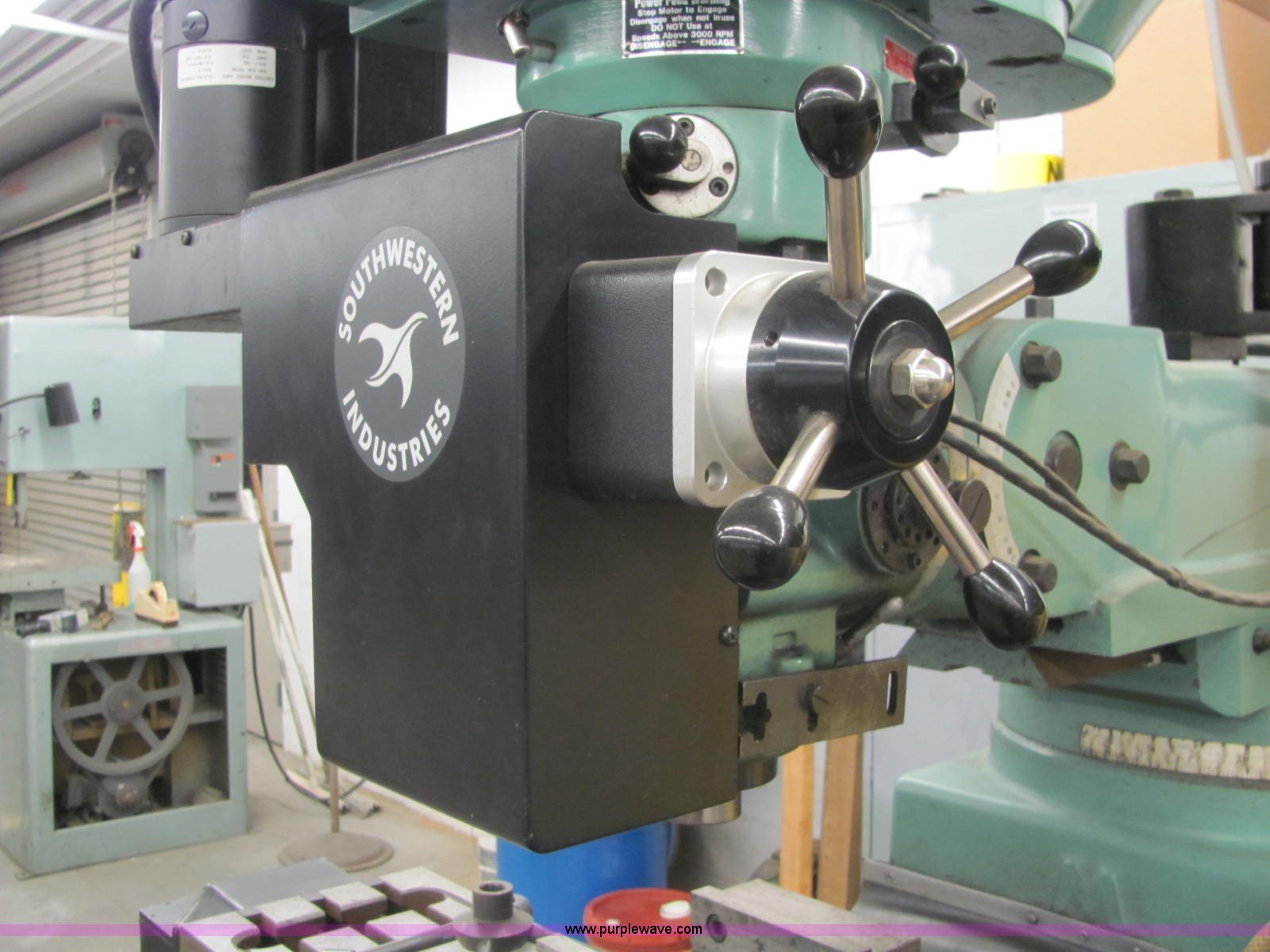

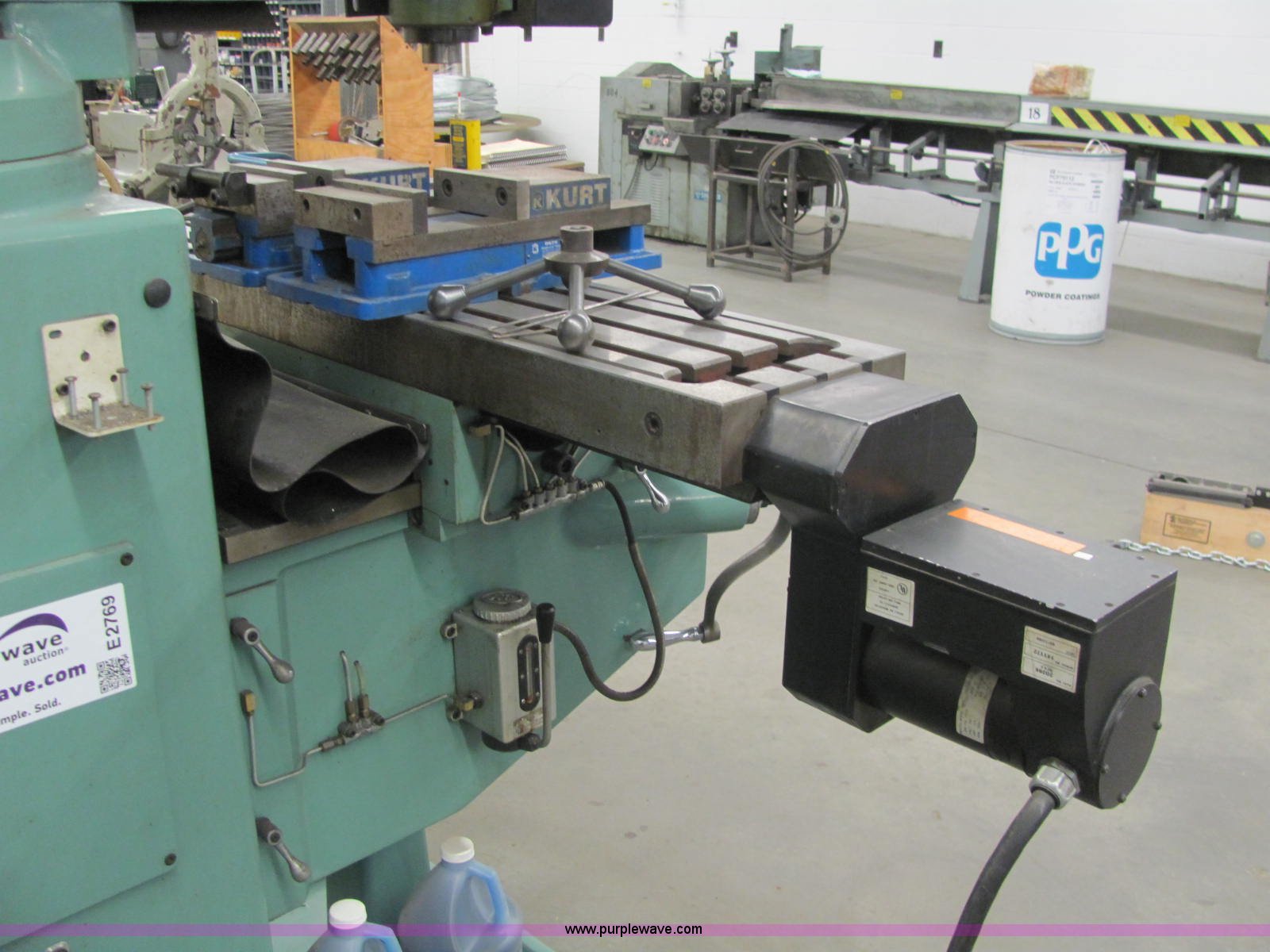

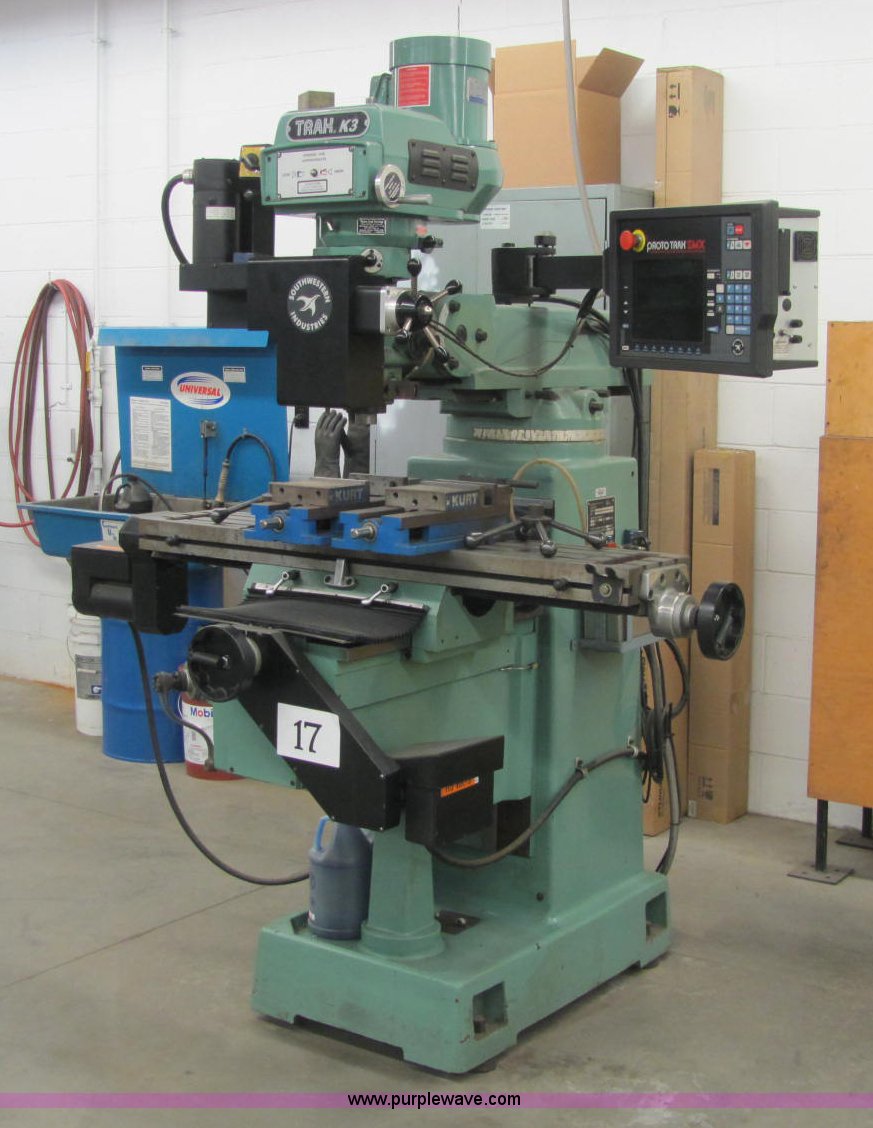

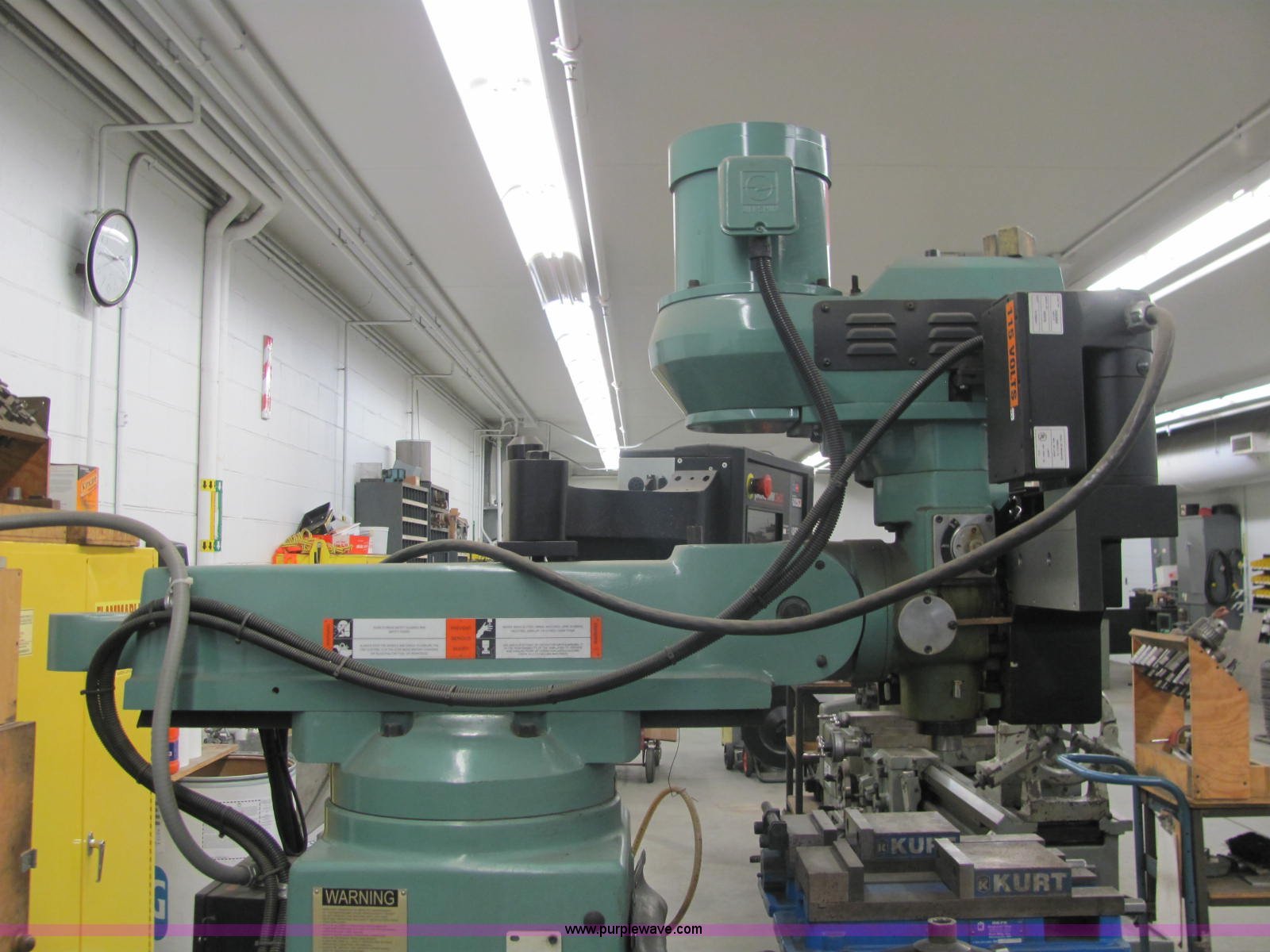

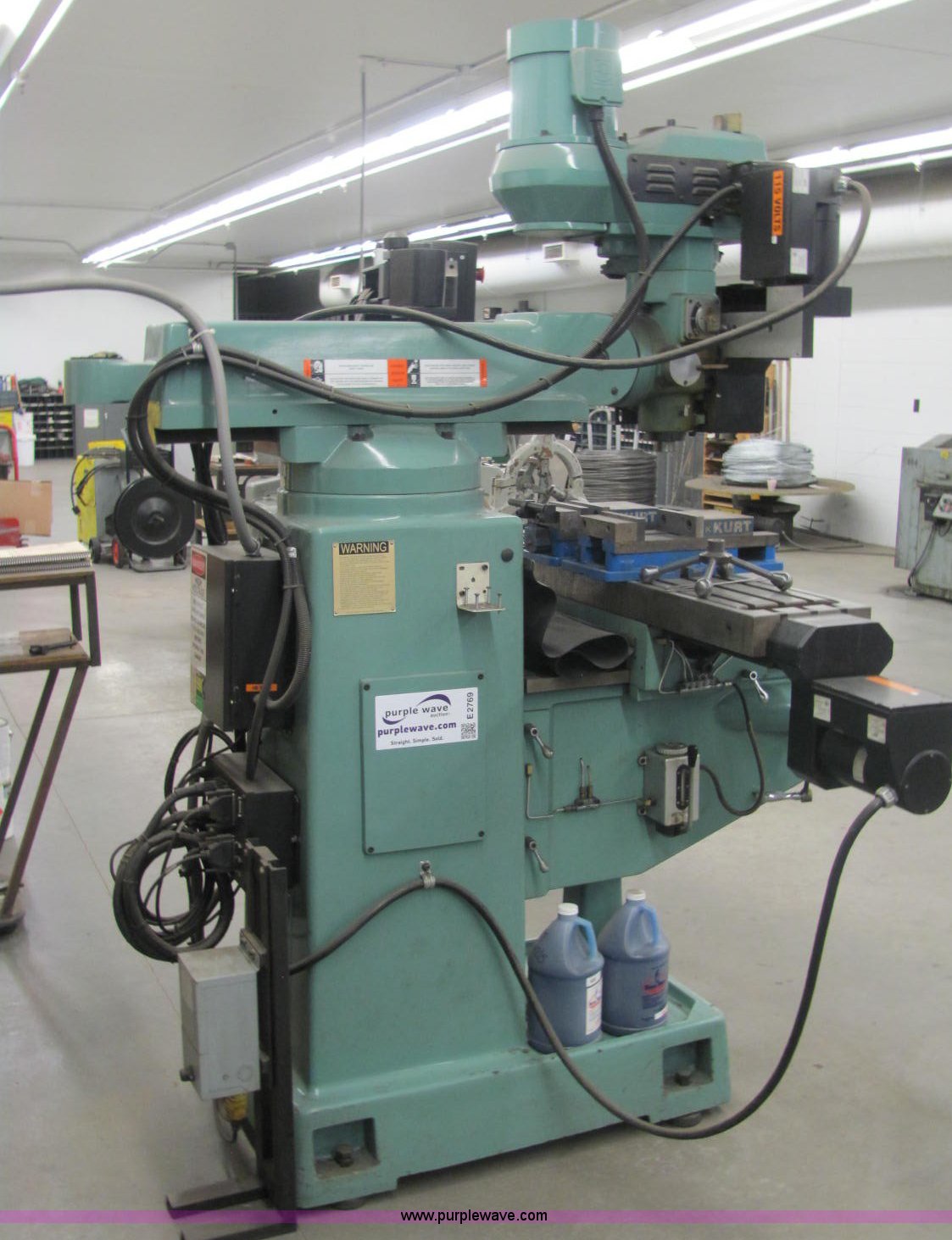

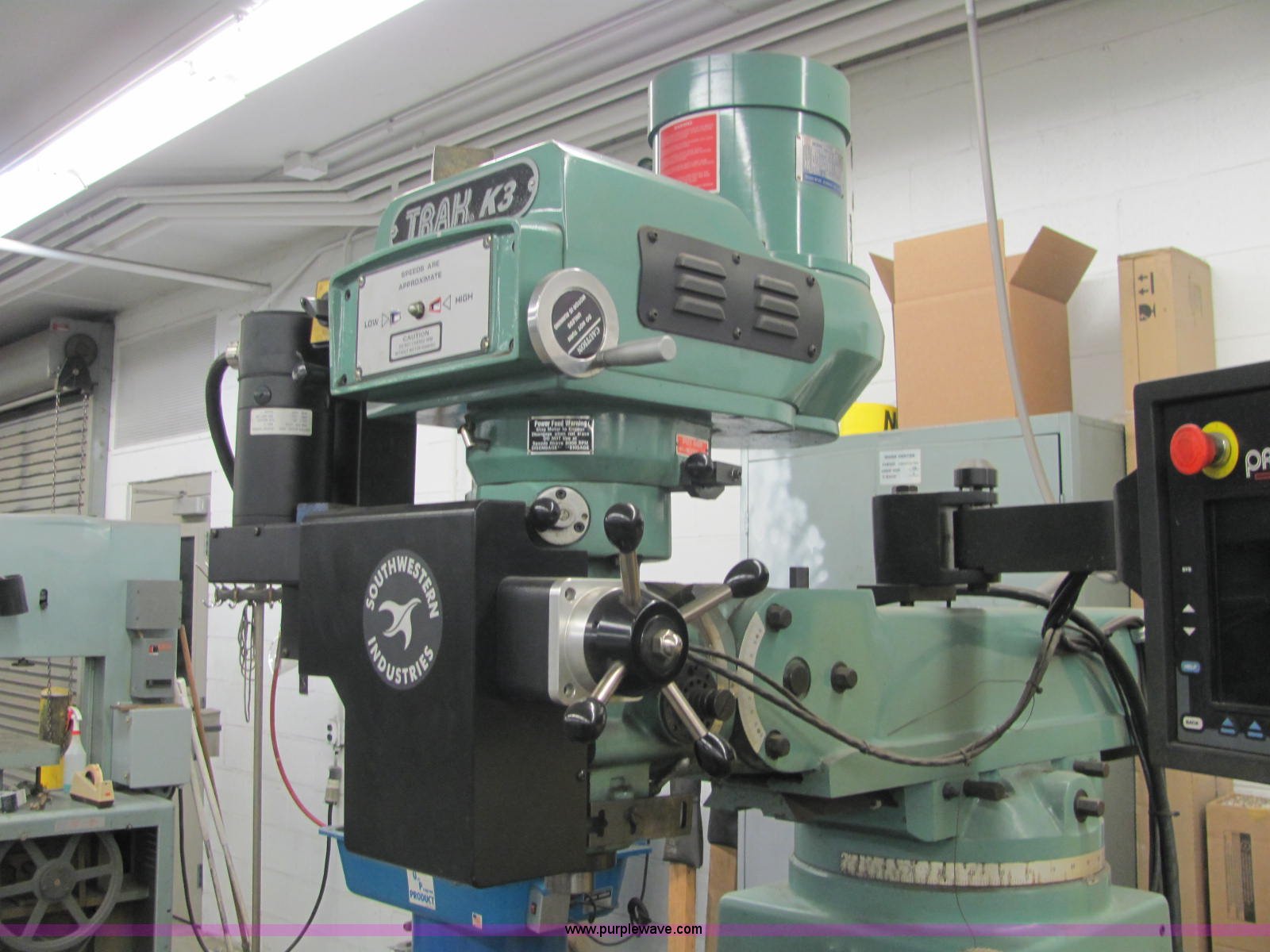

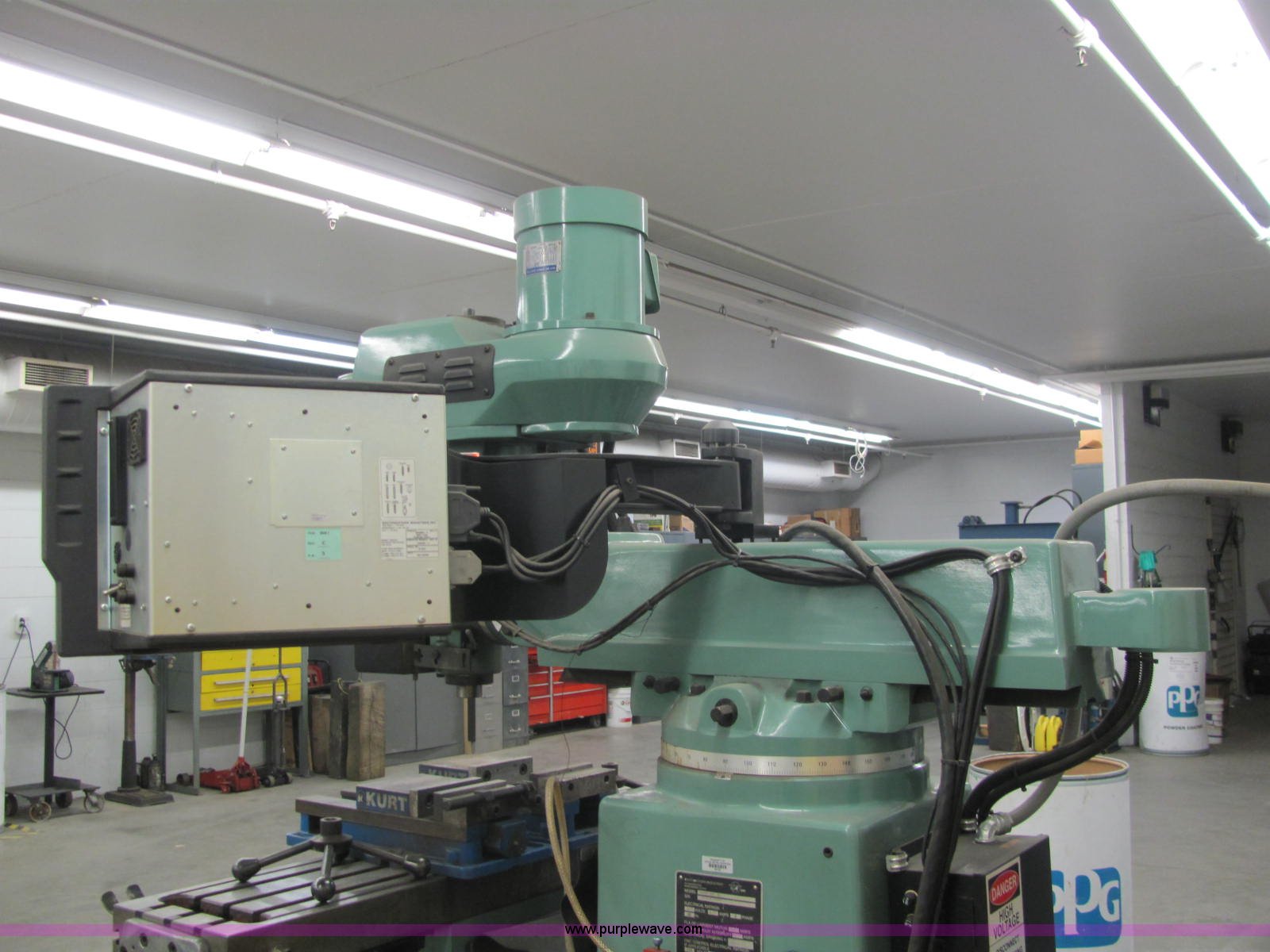

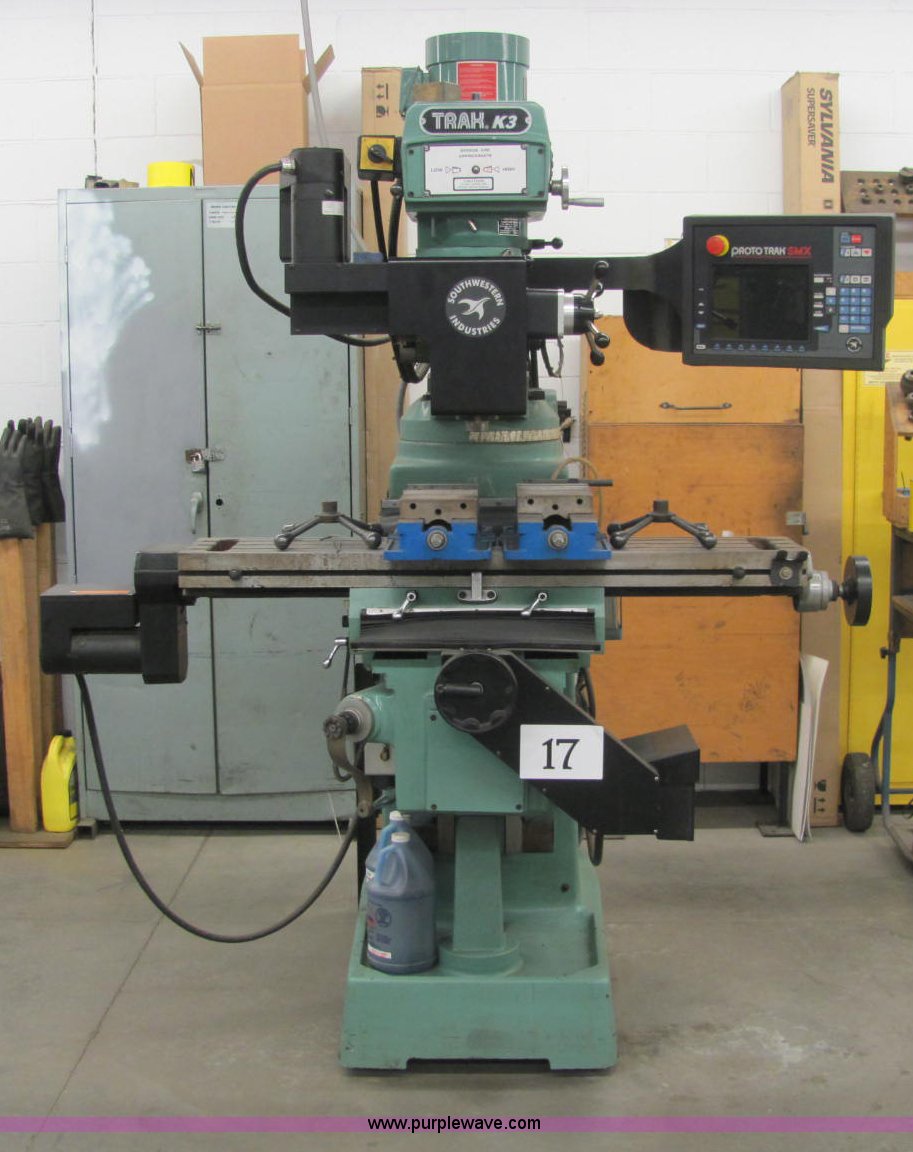

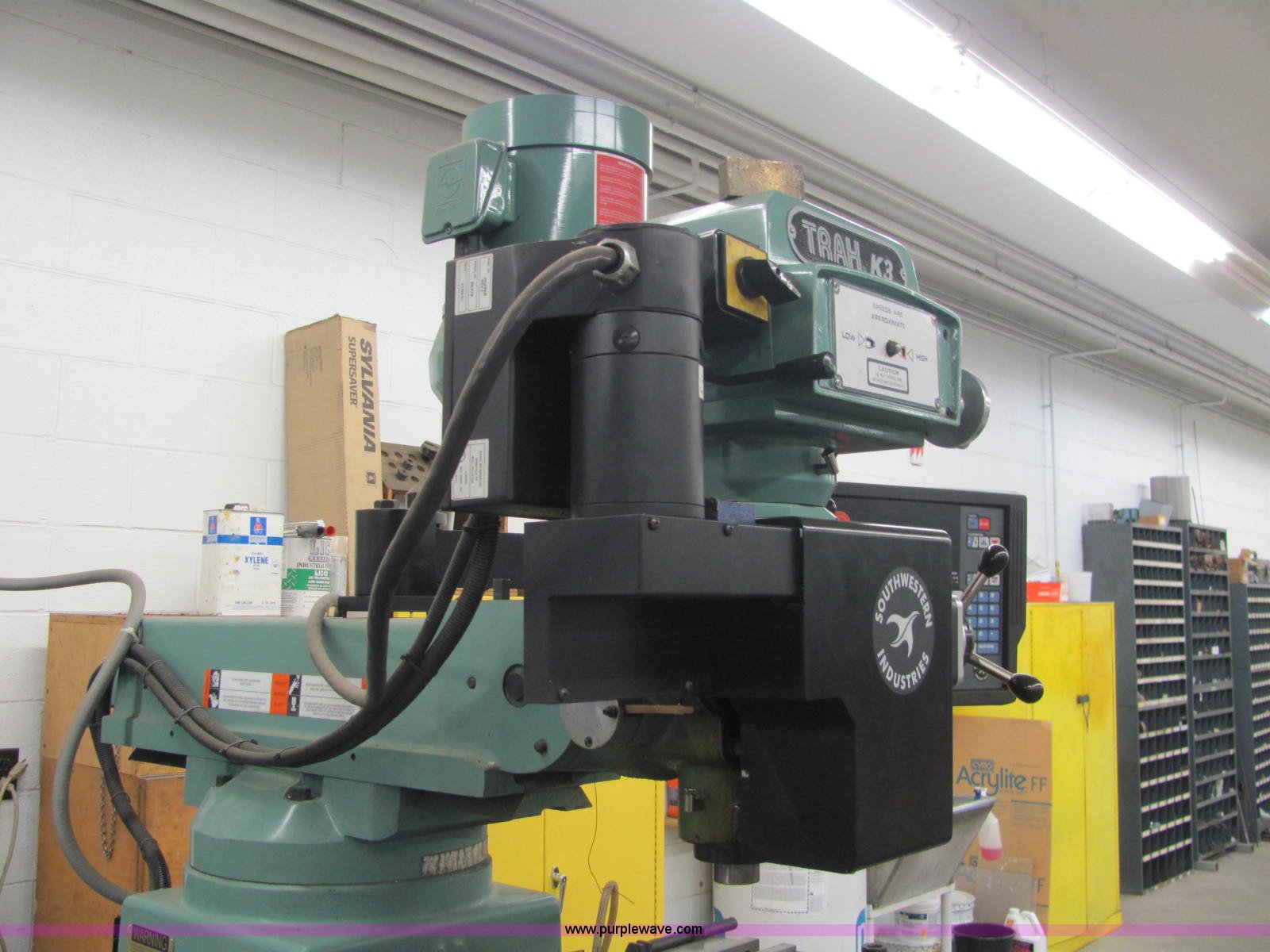

Southwestern Industries Trak K3sx CNC knee mill

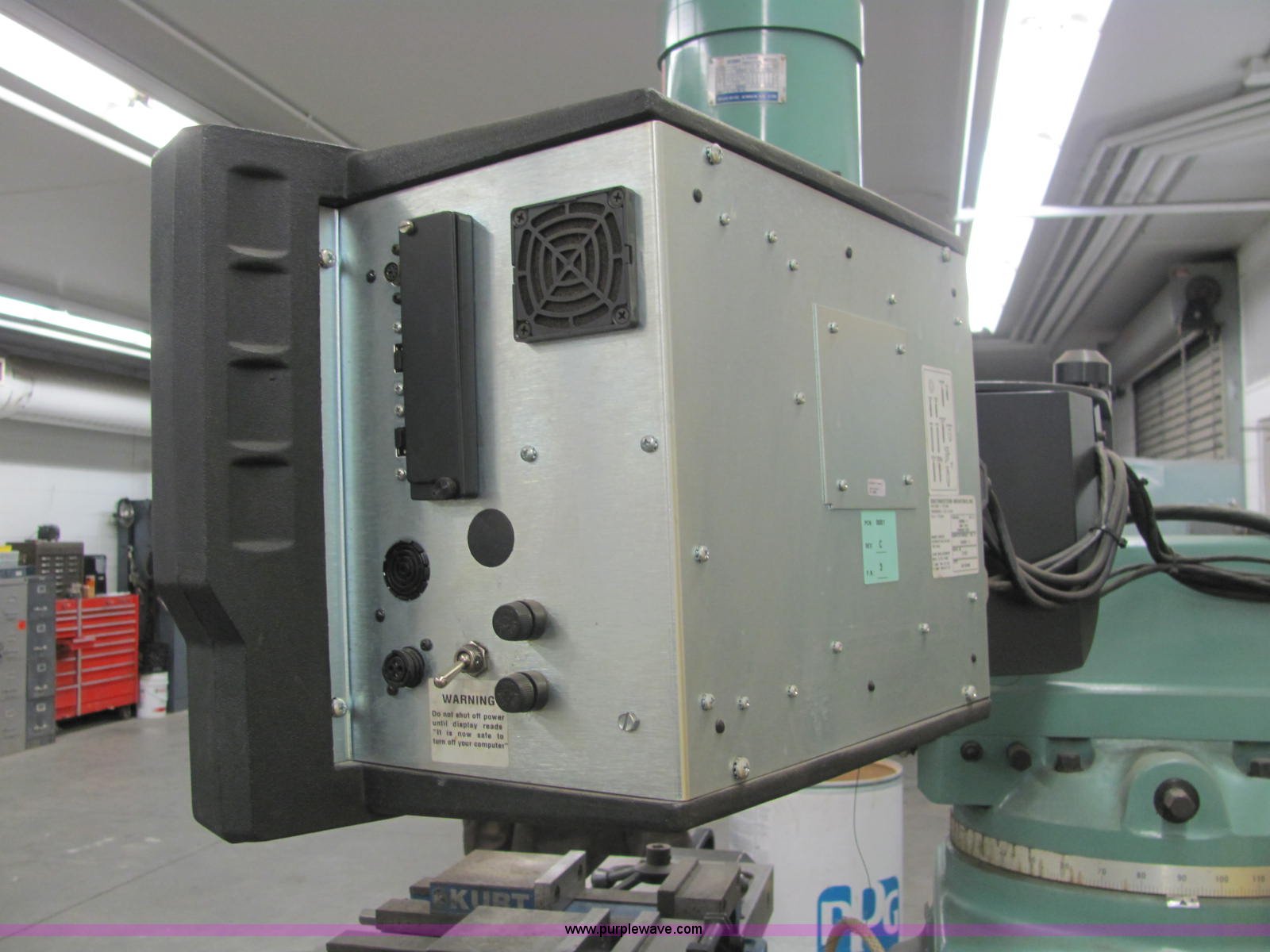

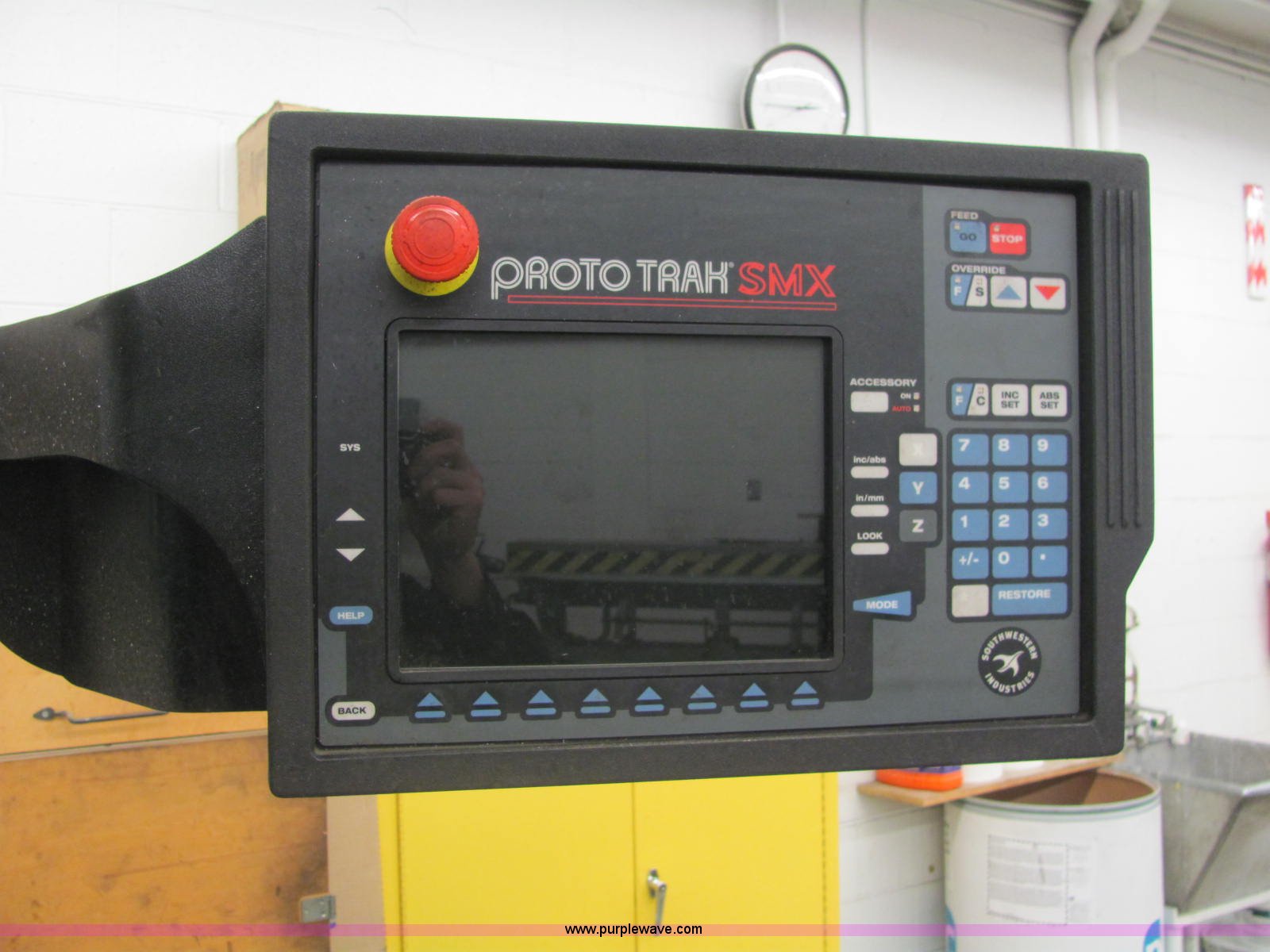

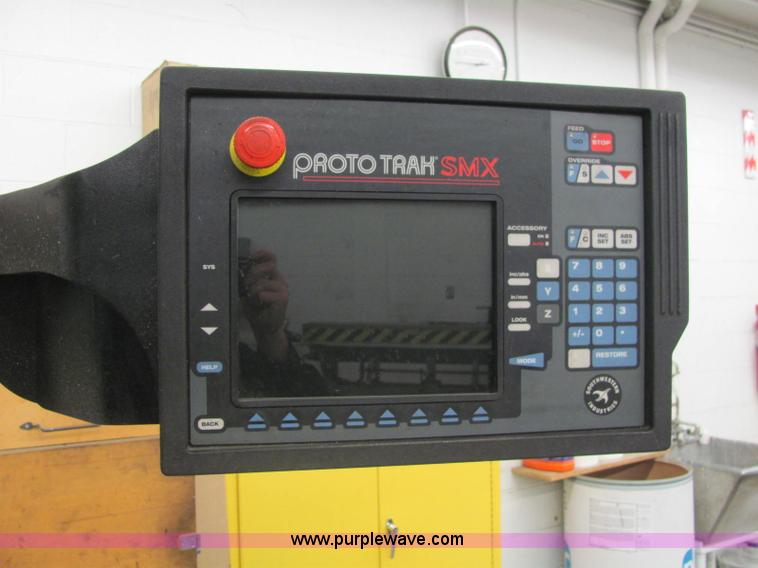

  • Proto Trak SMX CNC
  • Two axis CNC
  • Three axis DRO

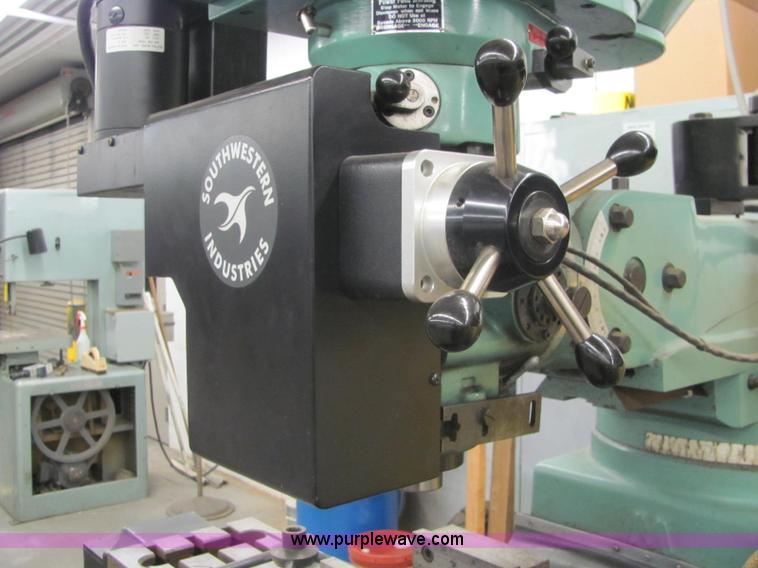

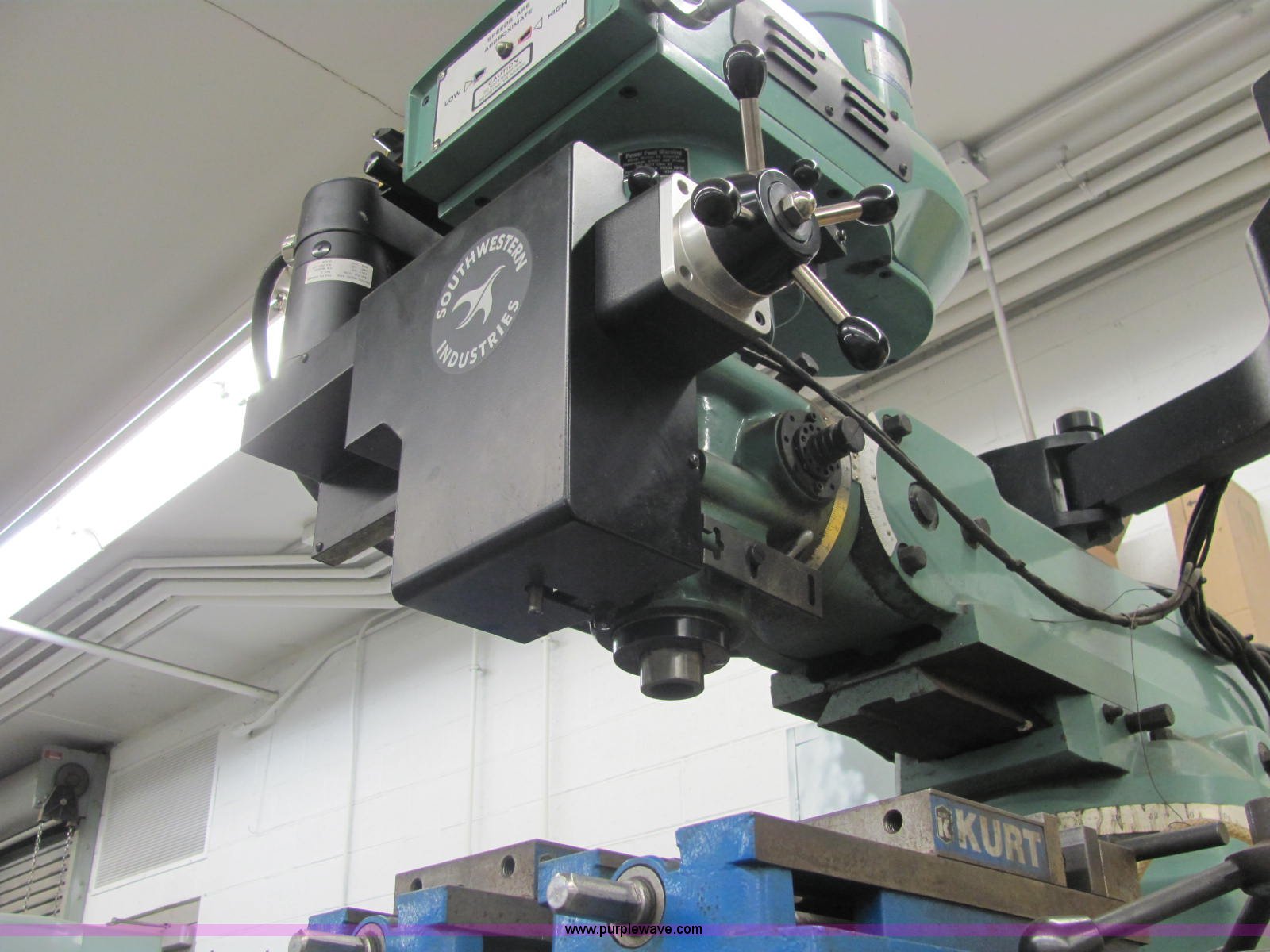

    • Manual Quill with DRO
  • Precision 7207 P4 spindle bearings
  • Chrome ground quill
  • Meehanite castings
  • Turcite coated slide ways
  • Standard glass scale for quill Z readout
  • Precision ground ball screws installed in the table and saddle
  • Wide way surfaces are hardened and ground

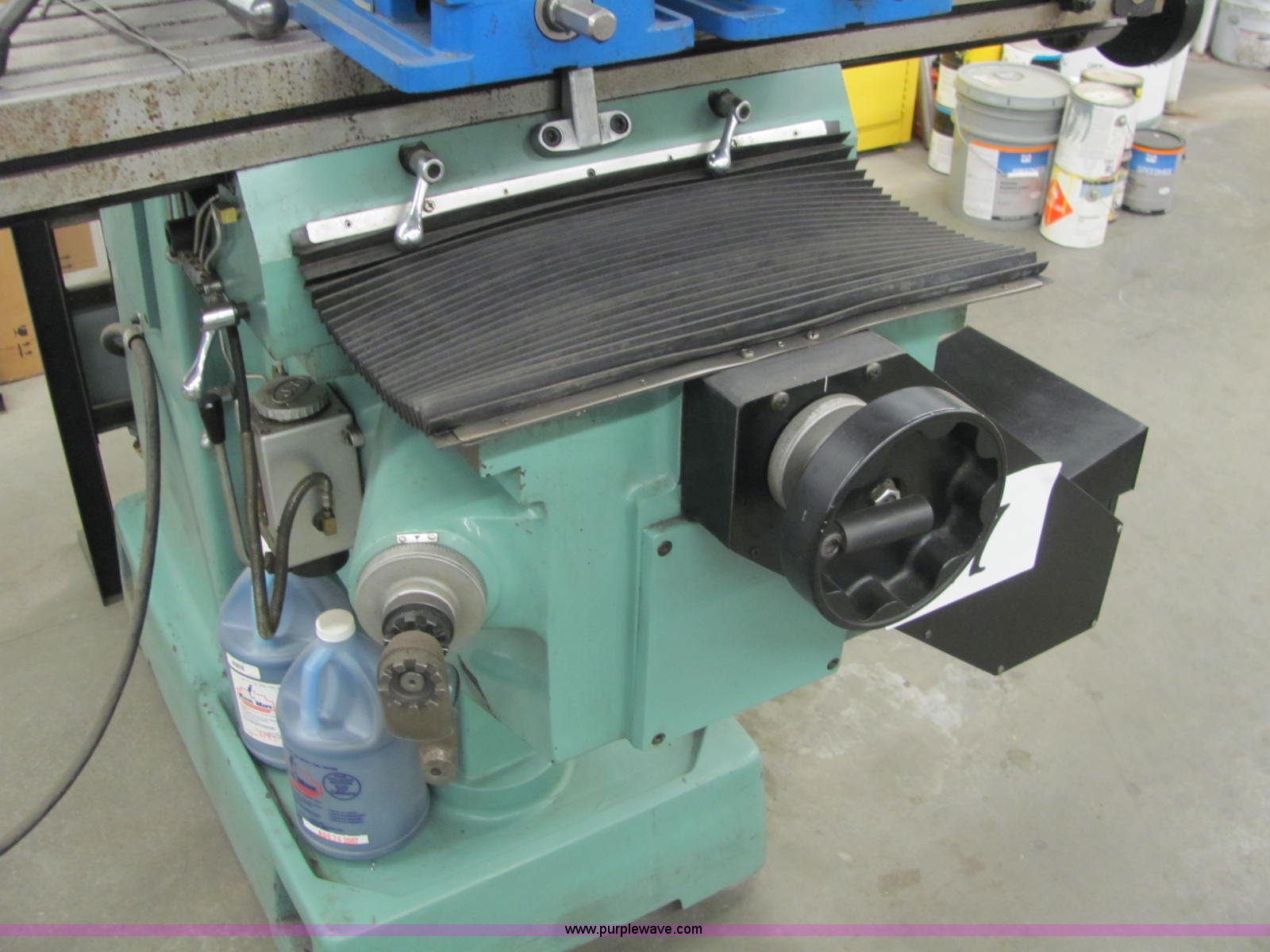

  • Real hand wheels for manual working

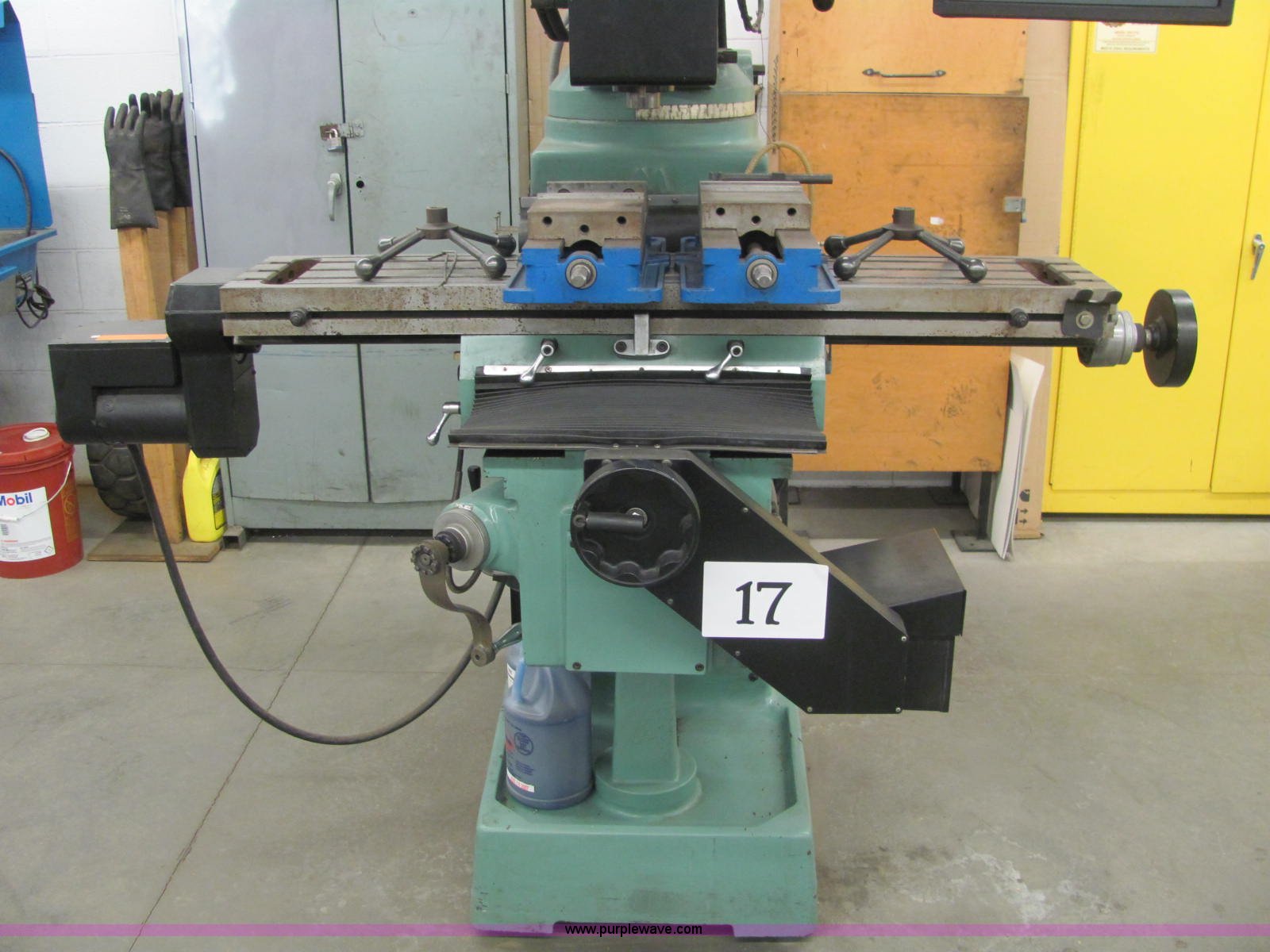

  • 50" x 10" table
  • 32" table travel
  • 15.5" saddle travel
  • 16" knee travel
  • 24" ram travel
  • 5" maximum quill travel
  • 3 3/8" quill diameter
  • R8 spindle taper
  • 60 to 4,200 RPM spindle speed range

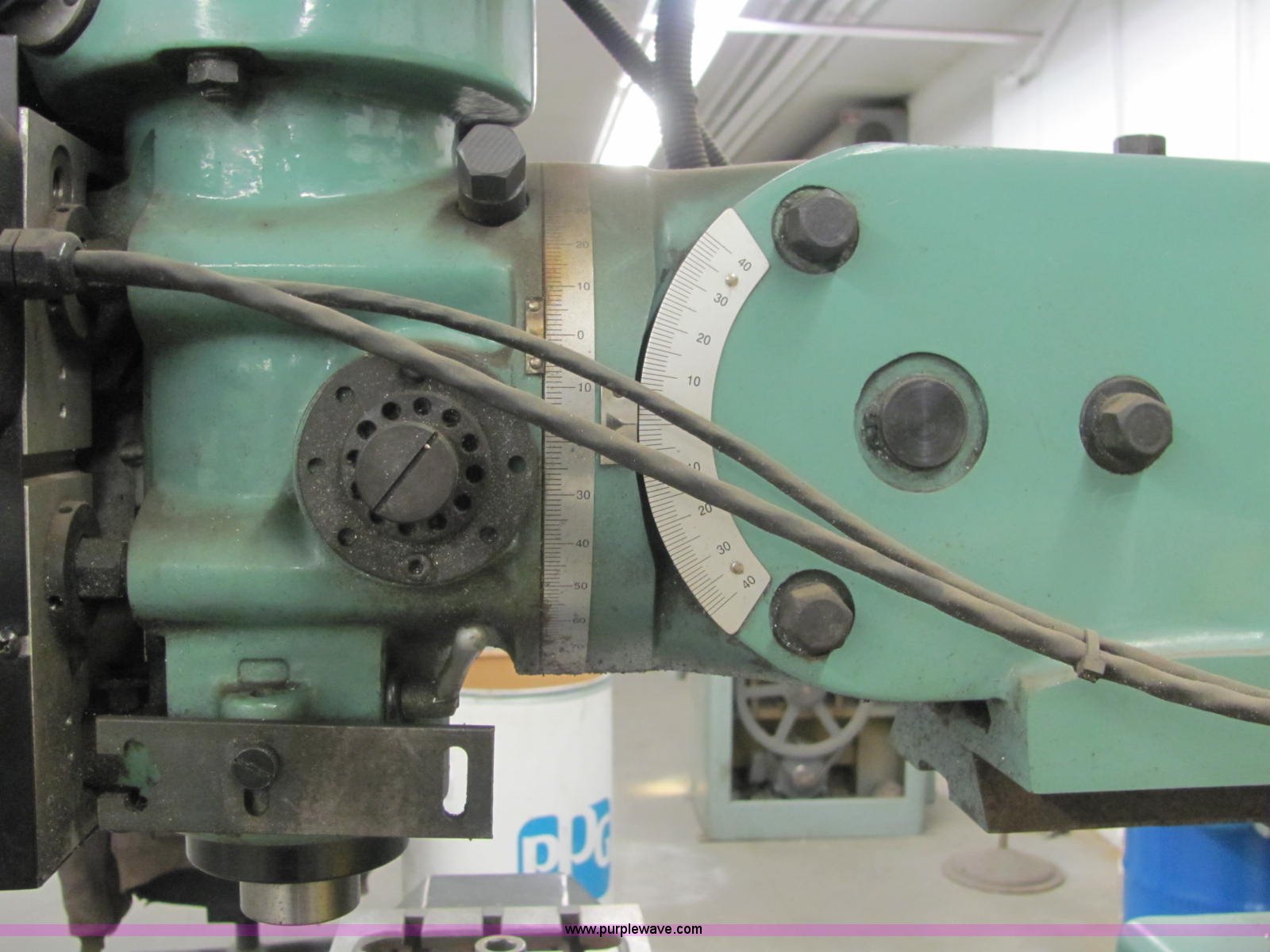

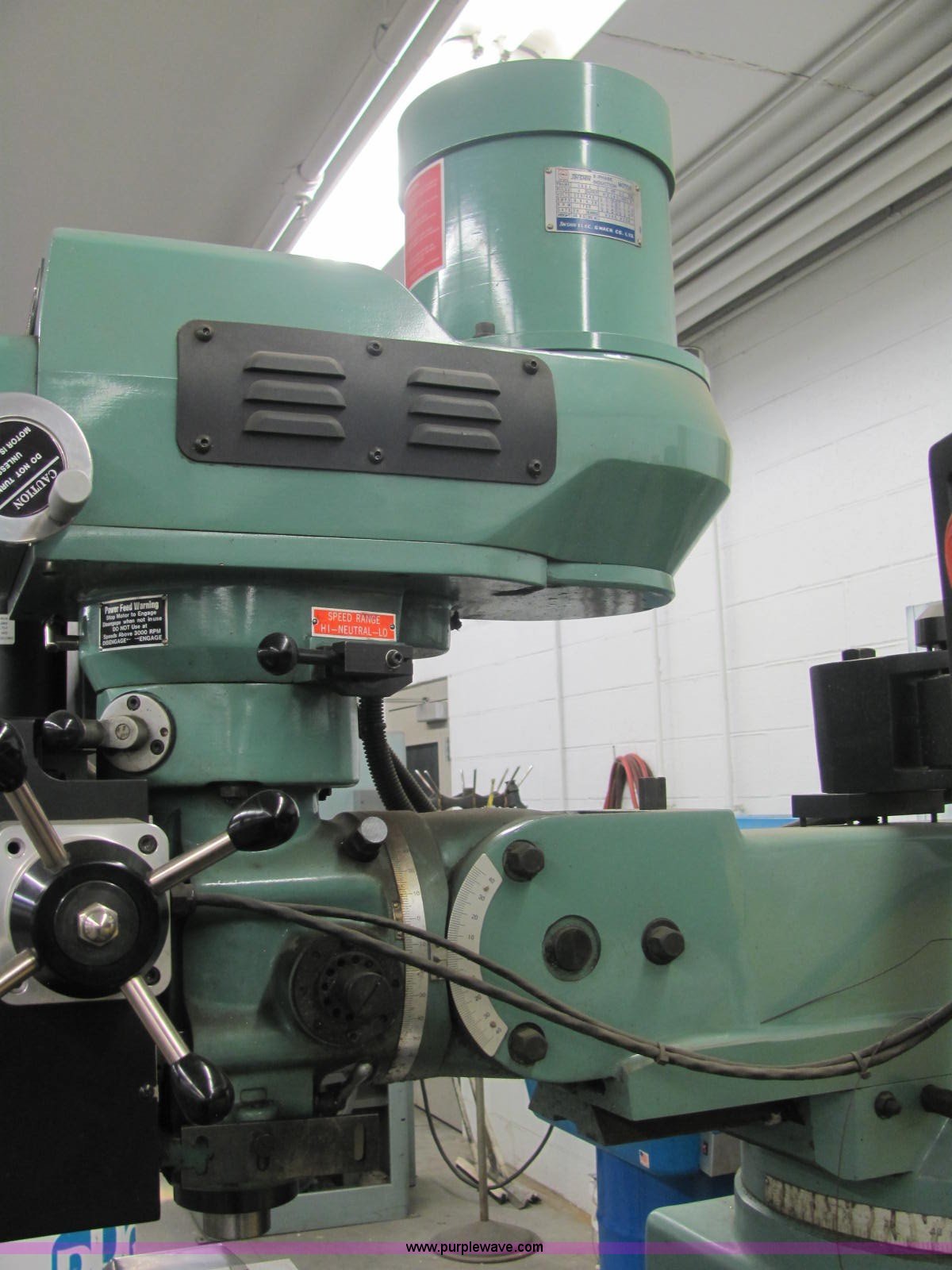

  • 45 degree forward and back head tilt

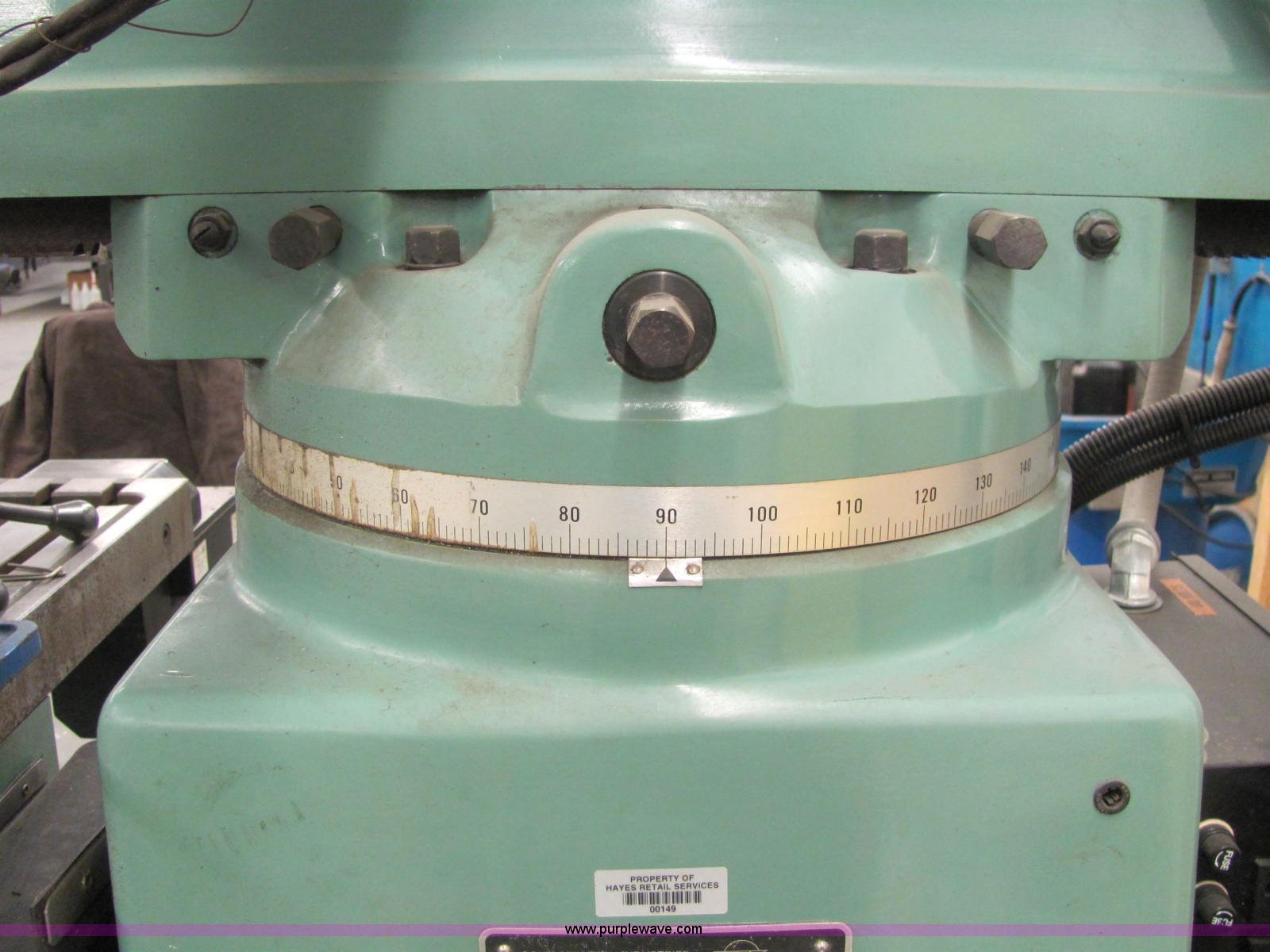

  • 90 degree left to right head tilt

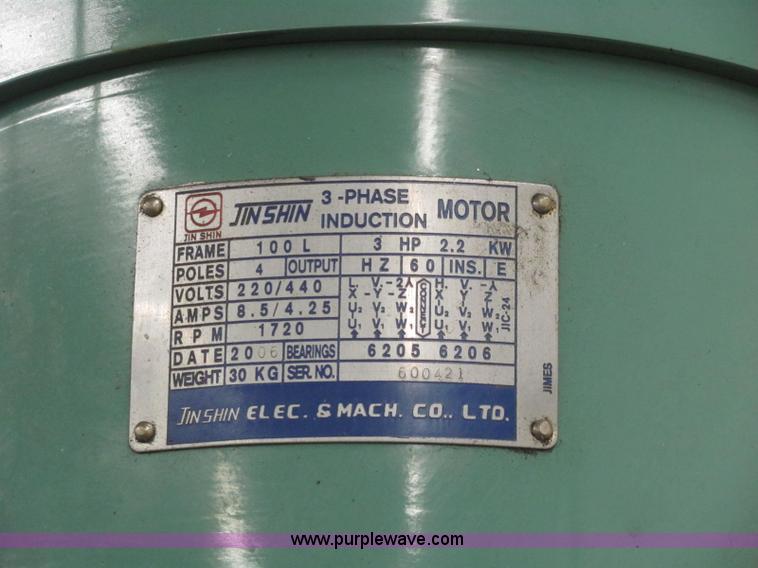

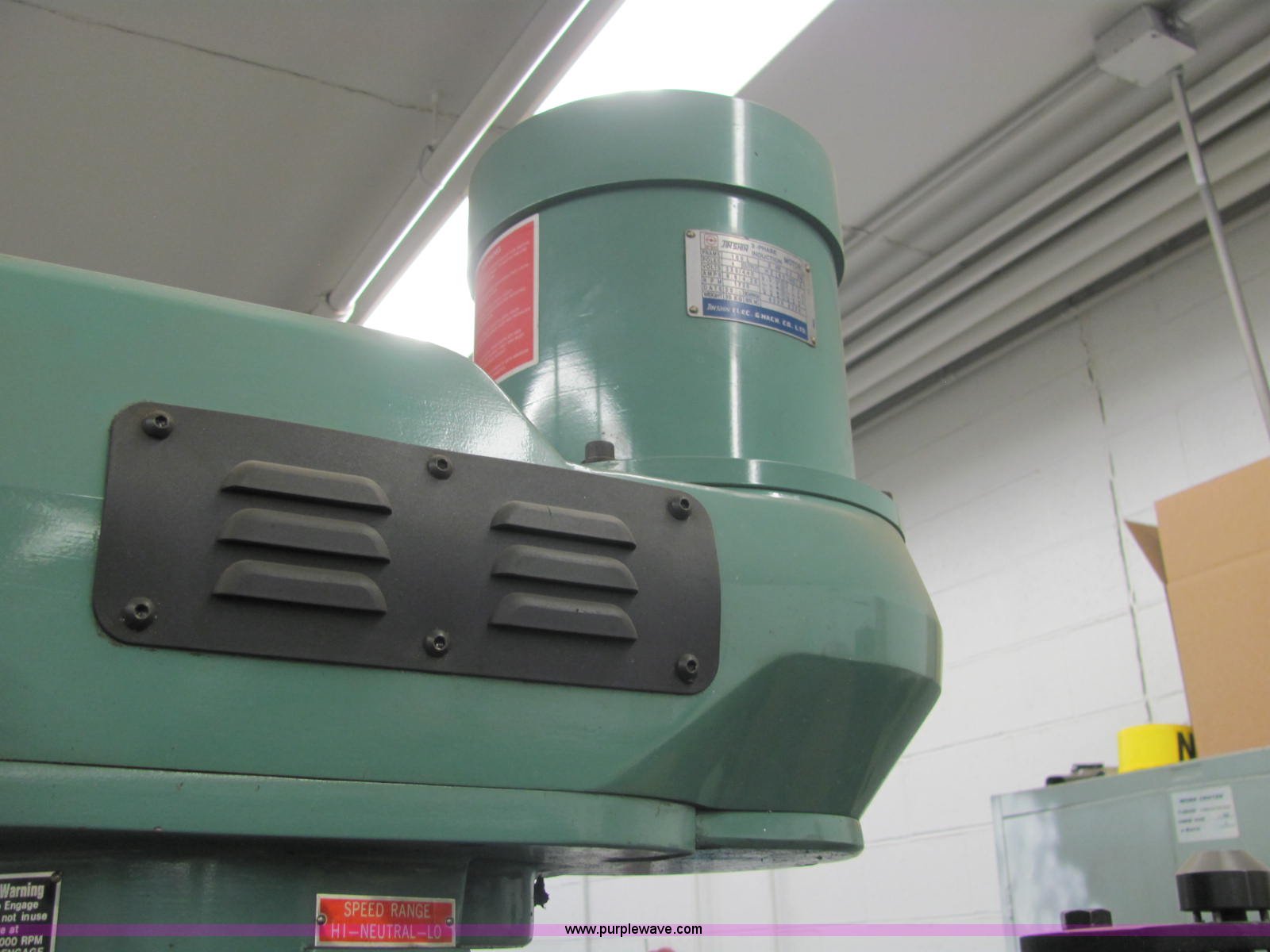

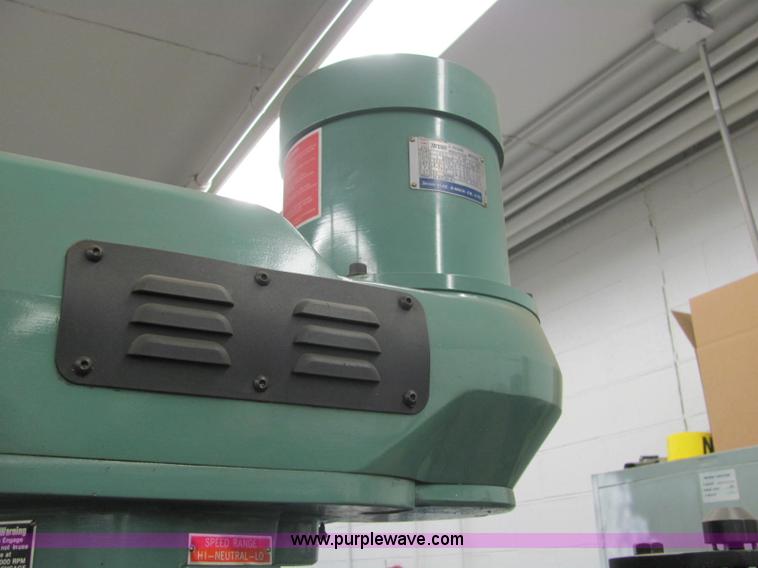

  • 3 HP spindle motor

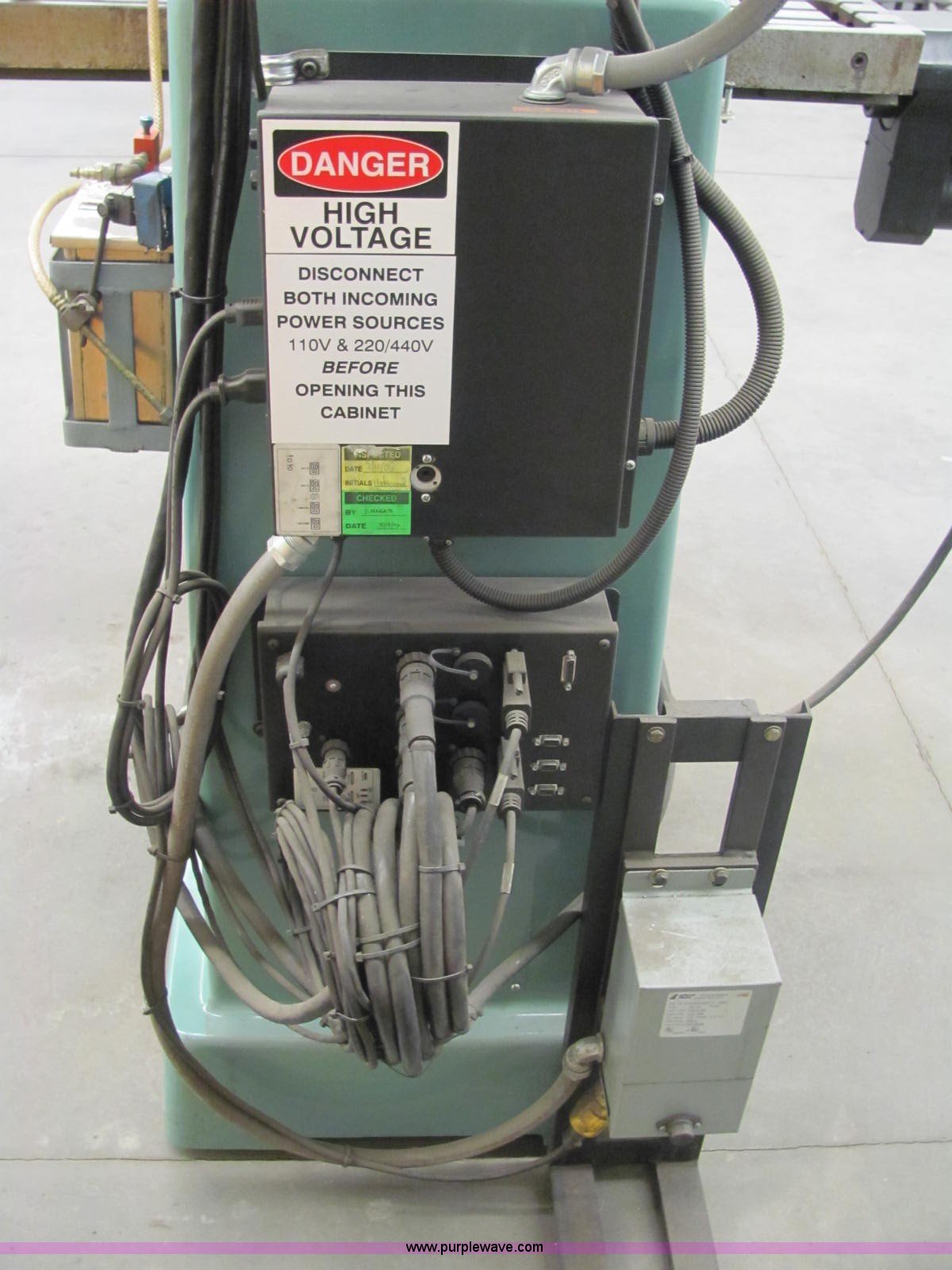

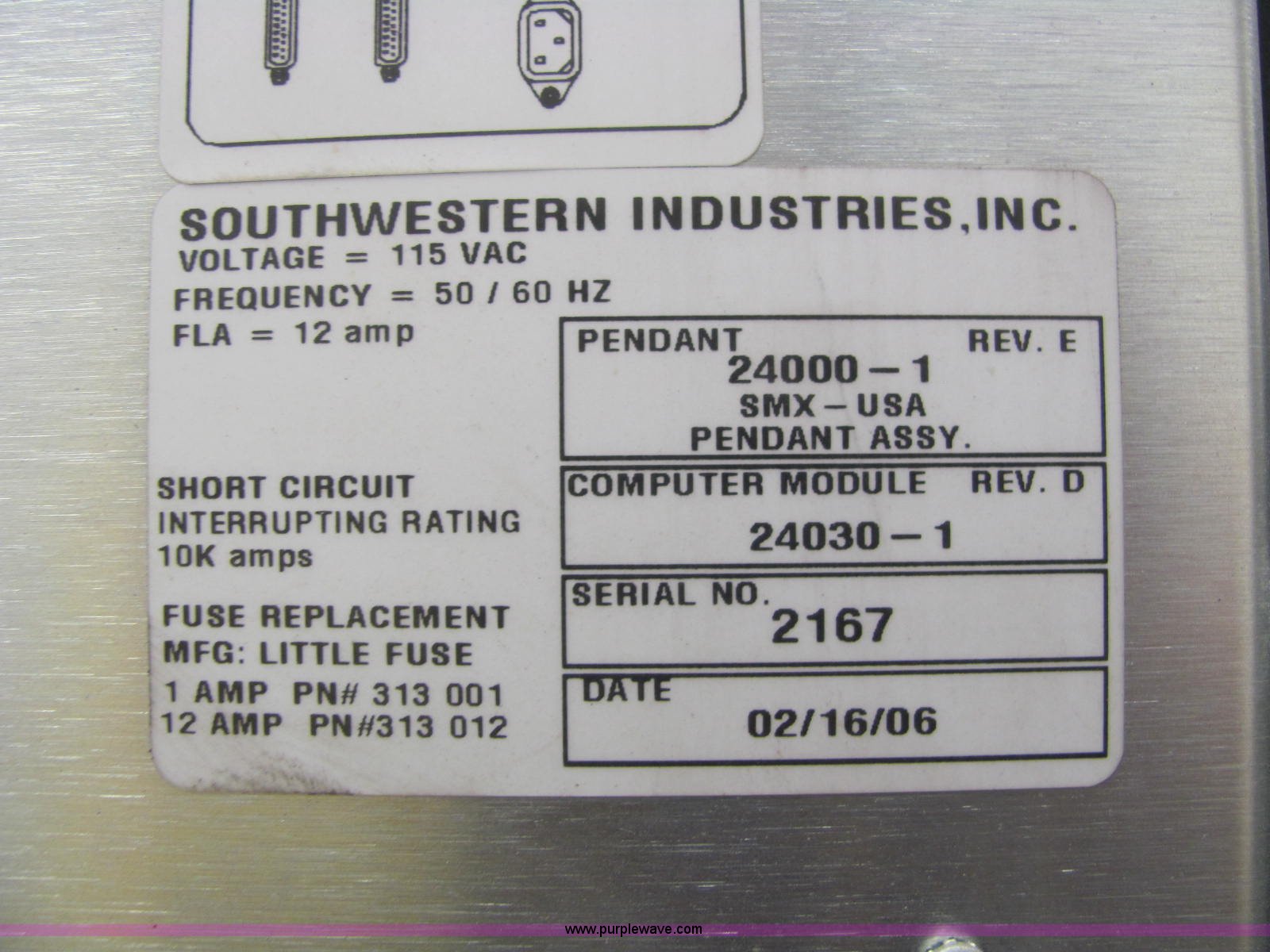

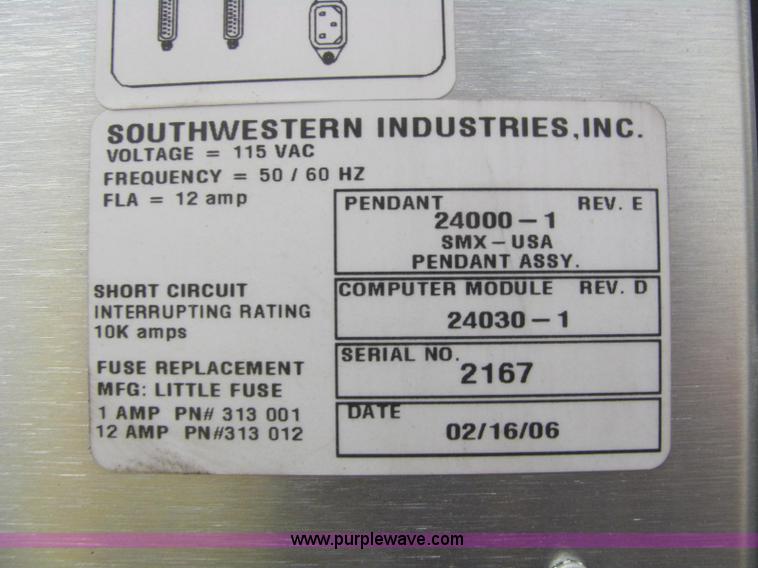

  • 110V control power
  • 220/440V machine power
  • 2,816 lbs lbs. base operating weight
  • 71"L x 59"W x 84"H overall dimensions
  • 750 lbs table capacity

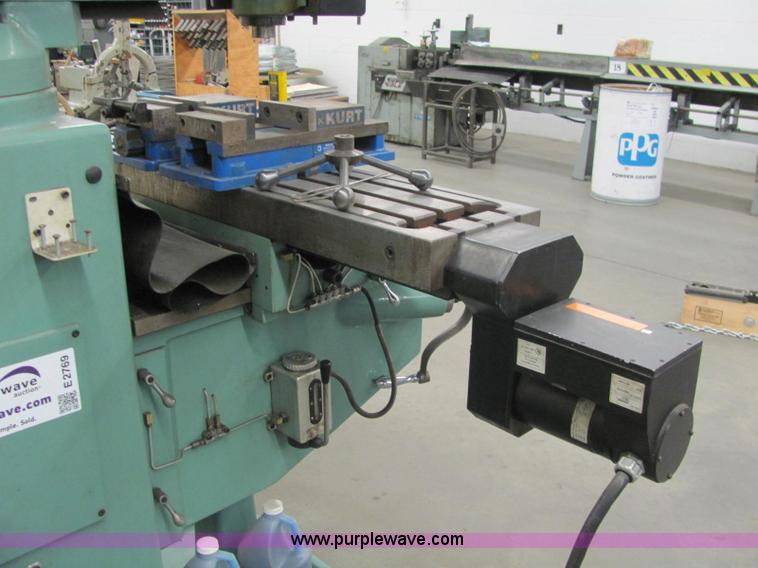

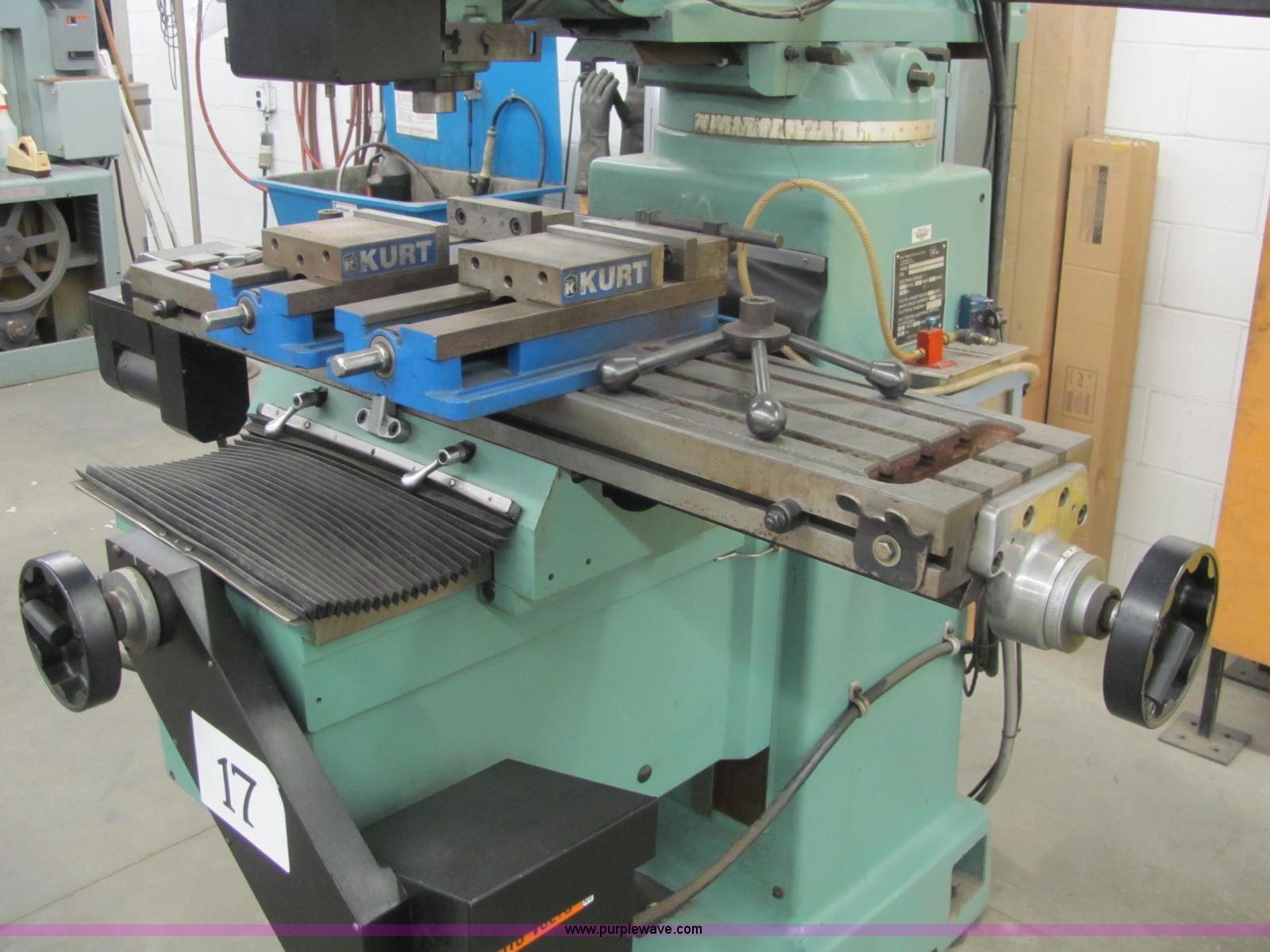

  • (2) Kurt vices
  • Manuals included

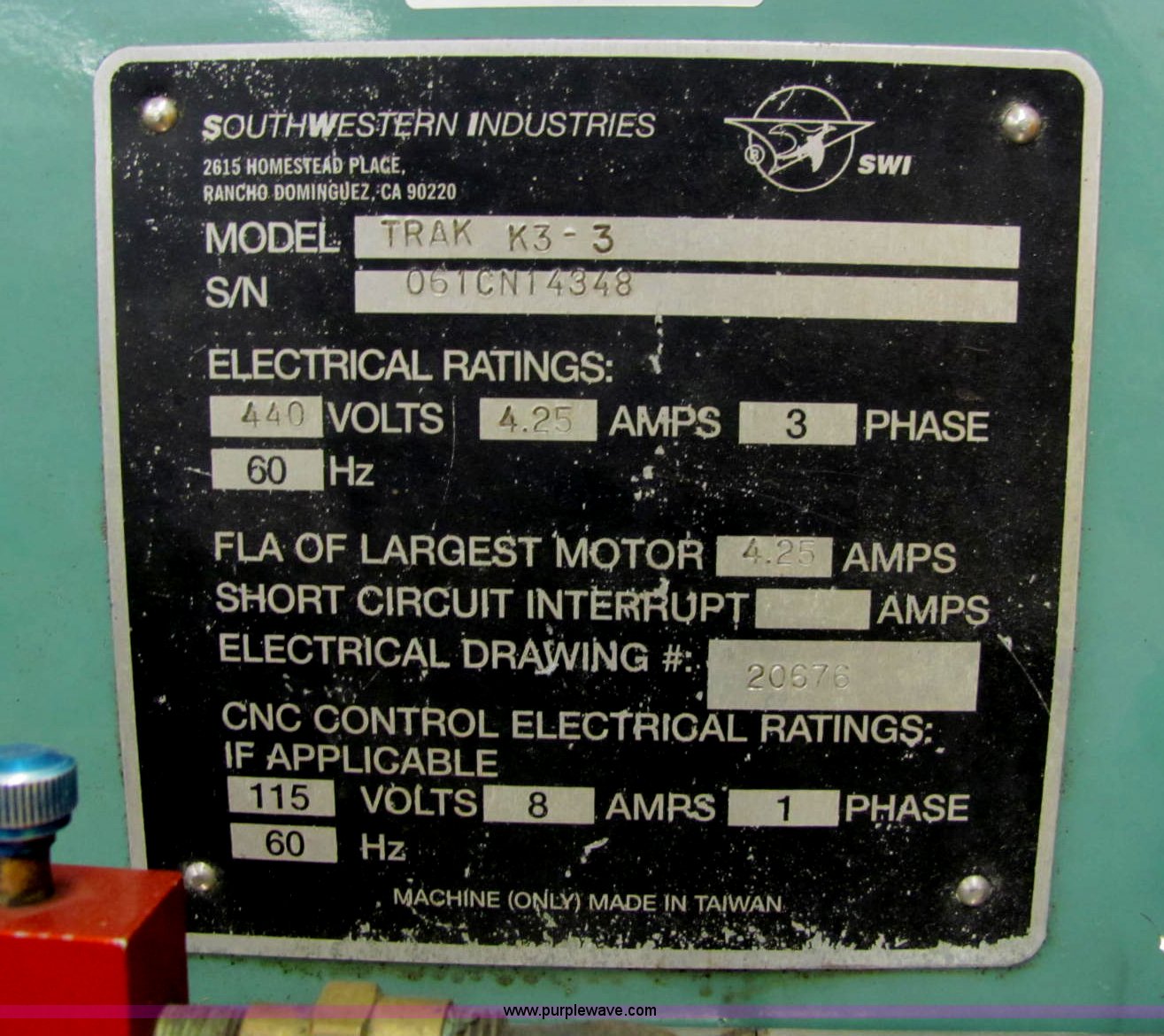

  • Serial 061CN14348
See the detailed specifications for more information
Shipping quotes available
The Hayes Co.
7700 N Hayes Dr.
Valley Center, KS 67147

Southwestern Industries Trak K3sx CNC knee mill has sold in Valley Center, Kansas for $18150. Item E2769 sold on January 9th, 2013.

Purple Wave is selling a used Milling Machines in Kansas. This item is a Southwestern Industries Trak K3sx CNC knee mill with the following: Proto Trak SMX CNC, Two axis CNC, Three axis DRO, Manual Quill with DRO, Precision 7207 P4 spindle bearings, Chrome ground quill, Meehanite castings, Turcite coated slide ways, Standard glass scale for quill Z readout, Precision ground ball screws installed in the table and saddle, Wide way surfaces are hardened and ground, Real hand wheels for manual working, 50" x 10" table, 32" table travel, 15.5" saddle travel, 16" knee travel, 24" ram travel, 5" maximum quill travel, 3 3/8" quill diameter, R8 spindle taper, 60 to 4,200 RPM spindle speed range, 45 degree forward and back head tilt, 90 degree left to right head tilt, 3 HP spindle motor, 110V control power, 220/440V machine power, 2,816 lbs lbs. base operating weight, 71"L x 59"W x 84"H overall dimensions, 750 lbs table capacity, (2) Kurt vices, Manuals included, Serial 061CN14348

This Southwestern Industries Trak K3sx CNC knee mill will sell to the highest bidder regardless of price.
